SPC AVENGER 150 STREET BS IV REV 15

830 parts across 52 plates

Color (Transition)Doc: 71112320Rev: REV. 15Date: 2018-08-0152 plates · 23 kits · 33 revisions

+40 more

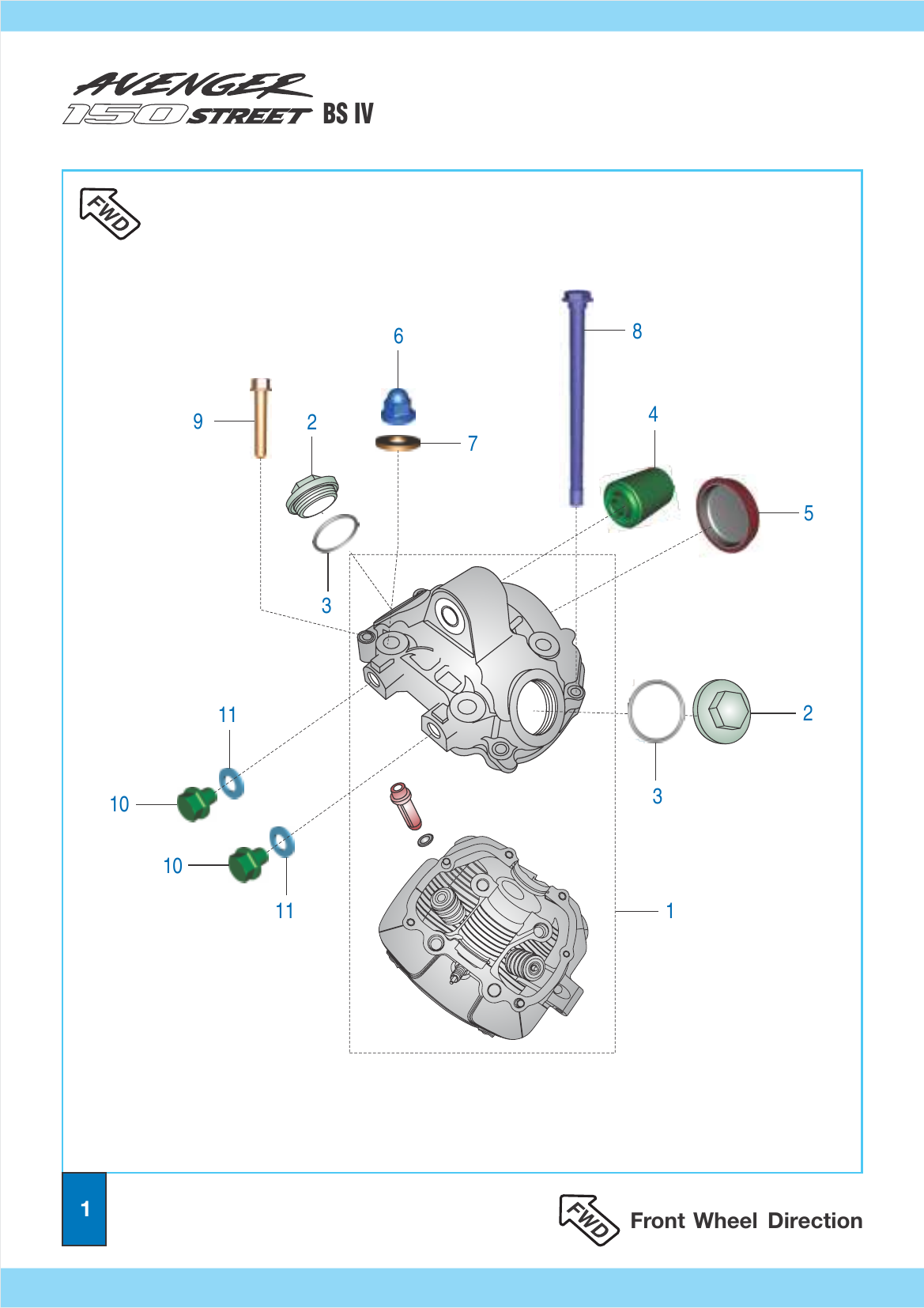

Plate 1

Cover Cylinder Head

12 parts

PD 5110 54

Head Cylinder with Cover

Ref 11 Refer Page No. 106

36 PD00 62

Kit Head Cylinder with Cover

Ref 11 BS IV

DH 1012 72

Plug

Ref 102

31 1011 06

Gasket (Washer)

Ref 112 2 2

PD 5110 25

Cover Tappet

Ref 22

36 DS10 01

Kit ‘O’ Ring for Cover Cyl Head

Ref 31 Refer Page No. 106

DS 1011 66

Silent Bush (V)

Ref 41

DS 1010 96

Camshaft Cap

Ref 51

39 2647 15

Domed Cap Nut

Ref 64

DS 1010 84

Copper Gasket (Washer)

Ref 74

59 0400 23

Hex. Bolt with Flange

Ref 82

39 1075 04

Hex. Bolt with Flange M6 x 35

Ref 94

Ref	Part #	Description	Qty.	Remarks
1	PD 5110 54	Head Cylinder with Cover	—	1 Refer Page No. 106
1 var. of 1	36 PD00 62	Kit Head Cylinder with Cover	—	1 BS IV
10	DH 1012 72	Plug	—	2
11	31 1011 06	Gasket (Washer)	—	2 2 2
2	PD 5110 25	Cover Tappet	—	2
3	36 DS10 01	Kit ‘O’ Ring for Cover Cyl Head	—	1 Refer Page No. 106
4	DS 1011 66	Silent Bush (V)	—	1
5	DS 1010 96	Camshaft Cap	—	1
6	39 2647 15	Domed Cap Nut	—	4
7	DS 1010 84	Copper Gasket (Washer)	—	4
8	59 0400 23	Hex. Bolt with Flange	—	2
9	39 1075 04	Hex. Bolt with Flange M6 x 35	—	4
