BAJAJ
PULSAR NS160 SINGLE TWIN DISC ABS REV 10
1194 parts across 56 plates
Color (Transition)Doc: 71112729Rev: REV. 10Date: 2020-03-0156 plates · 34 kits · 18 revisions

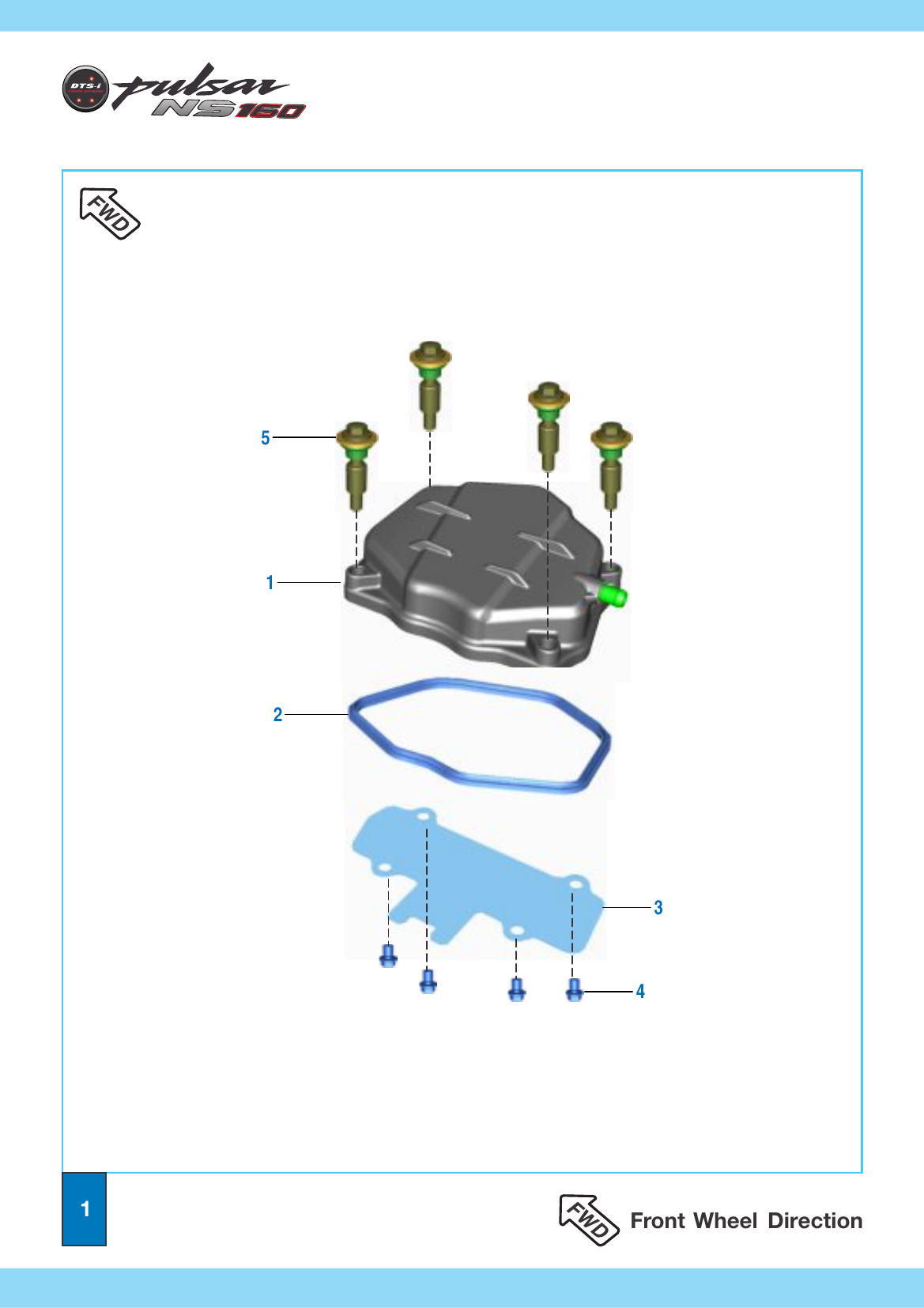

Plate 1
Cover Cylinder Head
52 JE00 74
Cover Cylinder Head
Ref 1Front Disc: 1 · Disc: 1
JE 5110 38
Gasket Cover Cylinder Head
Ref 2Front Disc: 1 · Disc: 1
JE 5110 40
Gasket Breather Head Cover
Ref 3Front Disc: 1 · Disc: 1
LA E000 26
Bolt Flange Small
Ref 4Front Disc: 4 · Disc: 4
JE 5110 53
Assembly Bolt Head Cover
Ref 5Front Disc: 4 · Disc: 4
| Ref | Part # | Description | Front Disc | Twin | Disc | Remarks | |
|---|---|---|---|---|---|---|---|
| 1 | 52 JE00 74 | Cover Cylinder Head | 1 | — | 1 | ||
| 2 | JE 5110 38 | Gasket Cover Cylinder Head | 1 | — | 1 | ||
| 3 | JE 5110 40 | Gasket Breather Head Cover | 1 | — | 1 | ||
| 4 | LA E000 26 | Bolt Flange Small | 4 | — | 4 | ||
| 5 | JE 5110 53 | Assembly Bolt Head Cover | 4 | — | 4 |
Showing 5 parts in Plate 1
