BAJAJ
PULSAR NS 160 BS VI USD FORK OBD2 REV 11
1234 parts across 66 plates
ColorDoc: 71120155Rev: REV. 11Date: 2024-02-0166 plates · 29 kits · 18 revisions

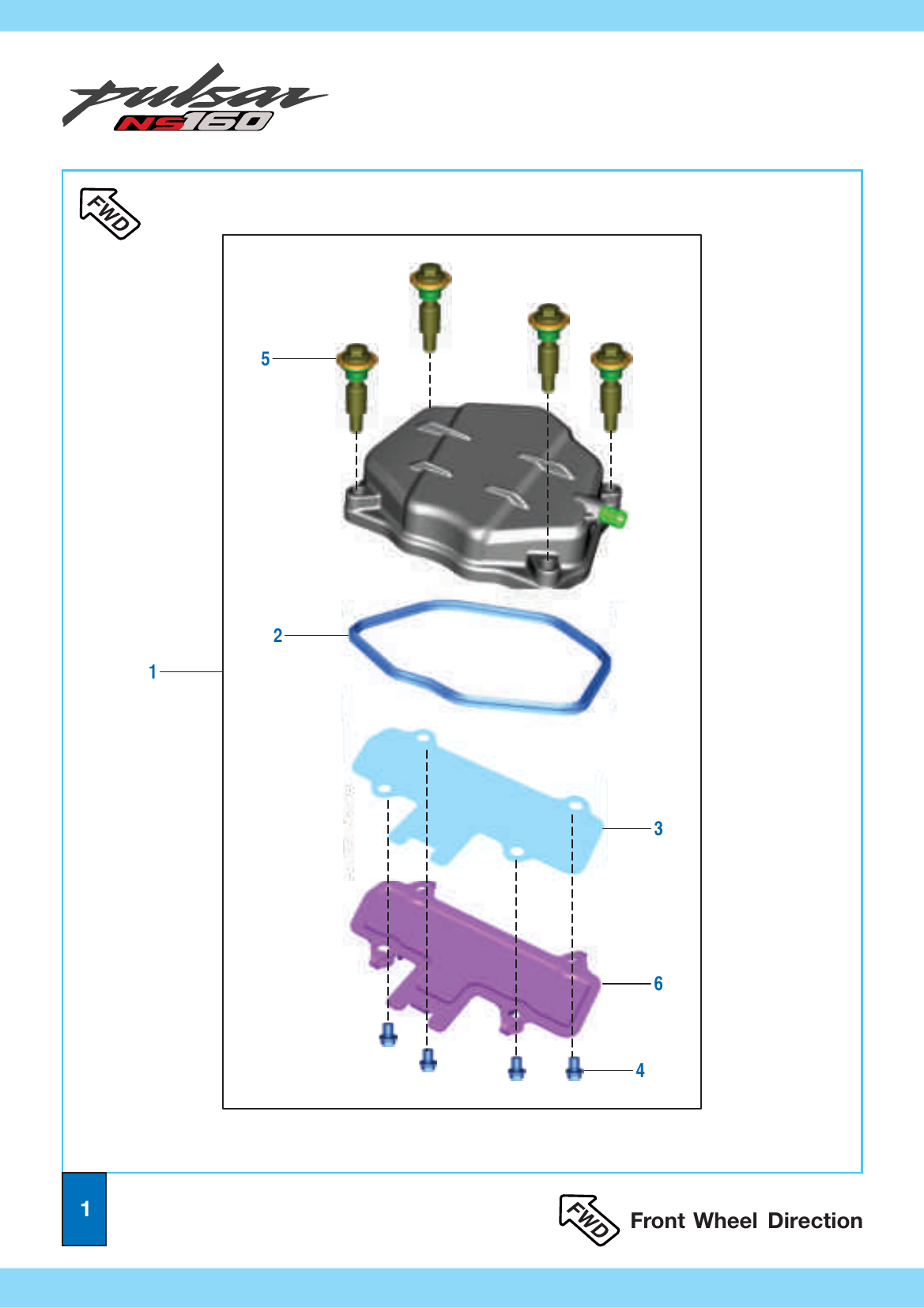

Plate 1
Cover Cylinder Head
52 JE00 74
Cover Cylinder Head
Ref 1Qty.: 1
JE 5110 38
Gasket Cover Cylinder Head
Ref 2Qty.: 1
JE 5110 40
Gasket Breather Head Cover
Ref 3Qty.: 1
LA E000 26
Bolt Flange Small
Ref 4Qty.: 4
JE 5110 53
Assembly Bolt Head Cover
Ref 5Qty.: 4
JE 5110 39
Plate Breather Head Cover
Ref 6Qty.: 1
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | 52 JE00 74 | Cover Cylinder Head | 1 | ||
| 2 | JE 5110 38 | Gasket Cover Cylinder Head | 1 | ||
| 3 | JE 5110 40 | Gasket Breather Head Cover | 1 | ||
| 4 | LA E000 26 | Bolt Flange Small | 4 | ||
| 5 | JE 5110 53 | Assembly Bolt Head Cover | 4 | ||
| 6 | JE 5110 39 | Plate Breather Head Cover | 1 |
Showing 6 parts in Plate 1
Plate 1
Cover Cylinder Head
52 JE00 74
Cover Cylinder Head
Ref 1Qty.: 1
JE 5110 38
Gasket Cover Cylinder Head
Ref 2Qty.: 1
JE 5110 40
Gasket Breather Head Cover
Ref 3Qty.: 1
LA E000 26
Bolt Flange Small
Ref 4Qty.: 4
JE 5110 53
Assembly Bolt Head Cover
Ref 5Qty.: 4
JE 5110 39
Plate Breather Head Cover
Ref 6Qty.: 1
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | 52 JE00 74 | Cover Cylinder Head | 1 | ||
| 2 | JE 5110 38 | Gasket Cover Cylinder Head | 1 | ||
| 3 | JE 5110 40 | Gasket Breather Head Cover | 1 | ||
| 4 | LA E000 26 | Bolt Flange Small | 4 | ||
| 5 | JE 5110 53 | Assembly Bolt Head Cover | 4 | ||
| 6 | JE 5110 39 | Plate Breather Head Cover | 1 |
Showing 6 parts in Plate 1
