BAJAJ
PULSAR NS 125 FI BS VI UG REV 09
1348 parts across 70 plates
ColorDoc: 71120170Rev: REV. 09Date: 2025-04-0170 plates · 25 kits · 21 revisions

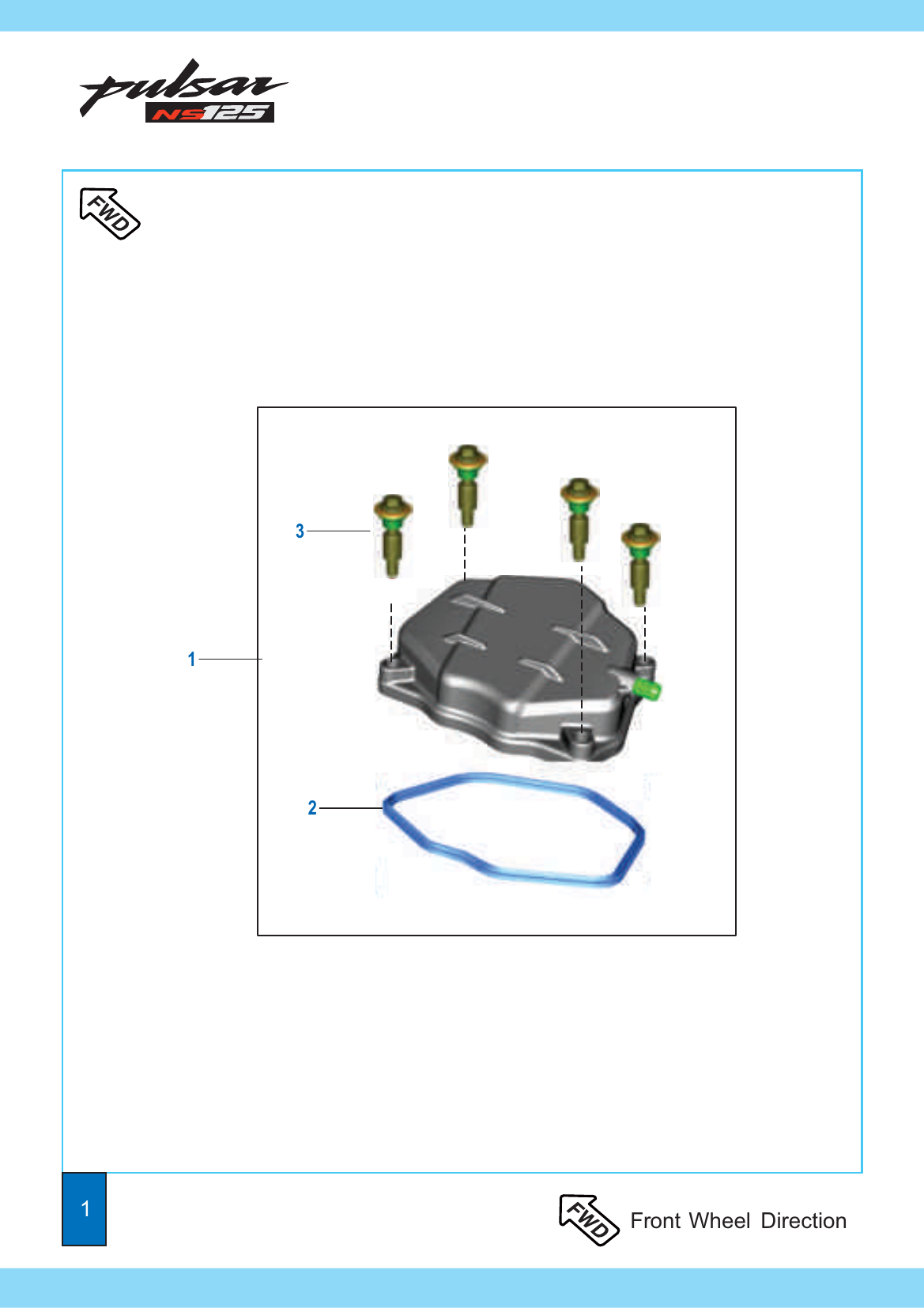

Plate 1
Cover Cylinder Head
JE 5111 56
Cover Cylinder Head
Ref 1Qty.: 1
JE 5111 92
Gasket Cover Cylinder Head
Ref 2Qty.: 1
JE 5110 53
Bolt
Ref 3Qty.: 4
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JE 5111 56 | Cover Cylinder Head | 1 | ||
| 2 | JE 5111 92 | Gasket Cover Cylinder Head | 1 | ||
| 3 | JE 5110 53 | Bolt | 4 |
Showing 3 parts in Plate 1
