BAJAJ
PULSAR NEW N 160 UG TWIN DISC REV02
1210 parts across 60 plates
ColorDoc: 71120233Rev: REV. 02Date: 2025-05-0160 plates · 19 kits · 0 revisions

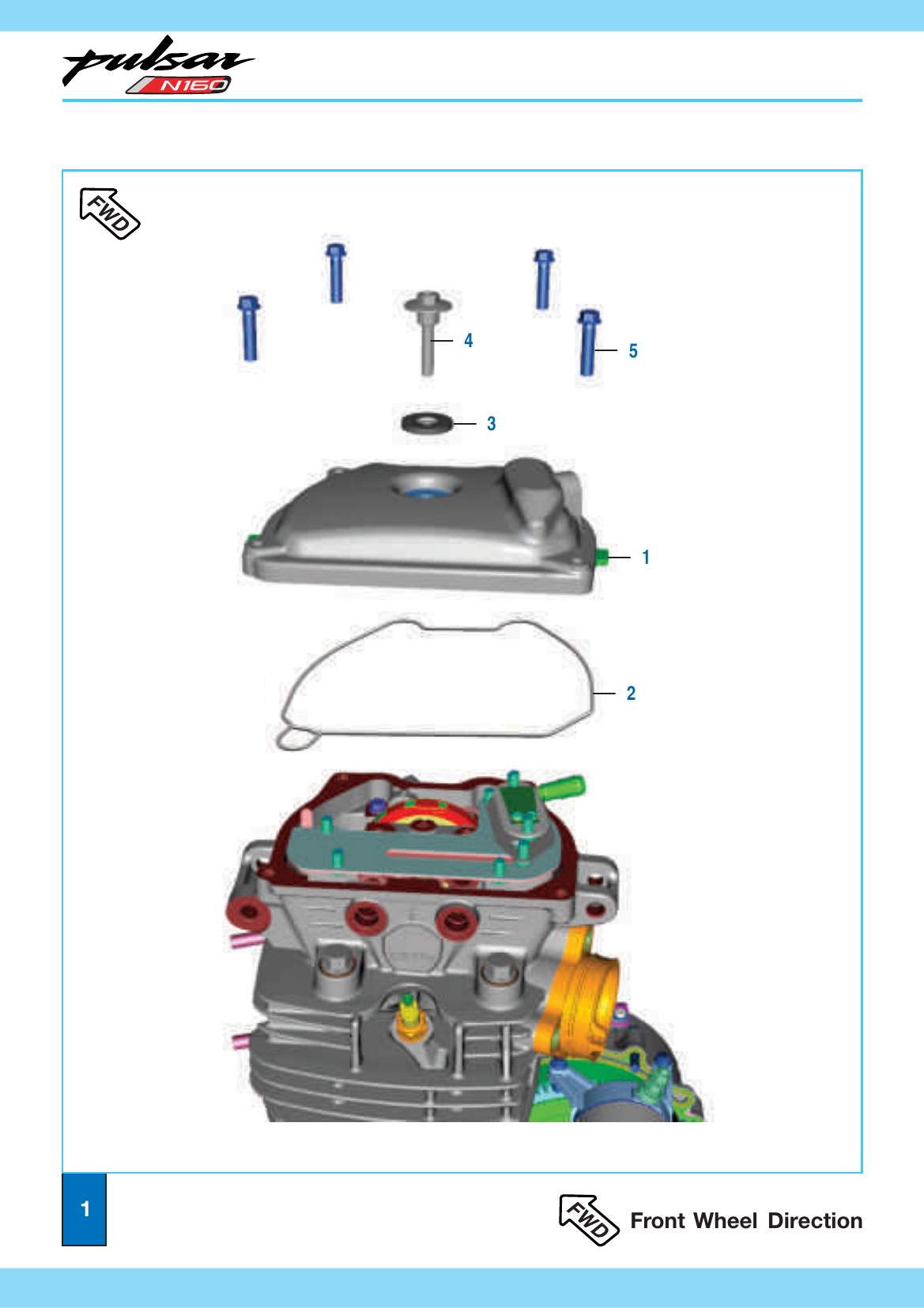

Plate 1
Cover Cylinder Head
PD511536
Cover Head Cylinder
Ref 11
PD511644
Gasket Cover Head Cylinder
Ref 21
JG511021
Washer
Ref 31
LAE00033
Bolt Flanged Step M6x1
Ref 41
KAED0625
Bolt Flanged M6x1
Ref 54
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PD511536 | Cover Head Cylinder | — | 1 | |
| 2 | PD511644 | Gasket Cover Head Cylinder | — | 1 | |
| 3 | JG511021 | Washer | — | 1 | |
| 4 | LAE00033 | Bolt Flanged Step M6x1 | — | 1 | |
| 5 | KAED0625 | Bolt Flanged M6x1 | — | 4 |
Showing 5 parts in Plate 1
