BAJAJ
PULSAR N160 OBD2B REV 09
1531 parts across 62 plates
ColorDoc: 71120184Rev: REV. 09Date: 2025-02-0162 plates · 19 kits · 16 revisions

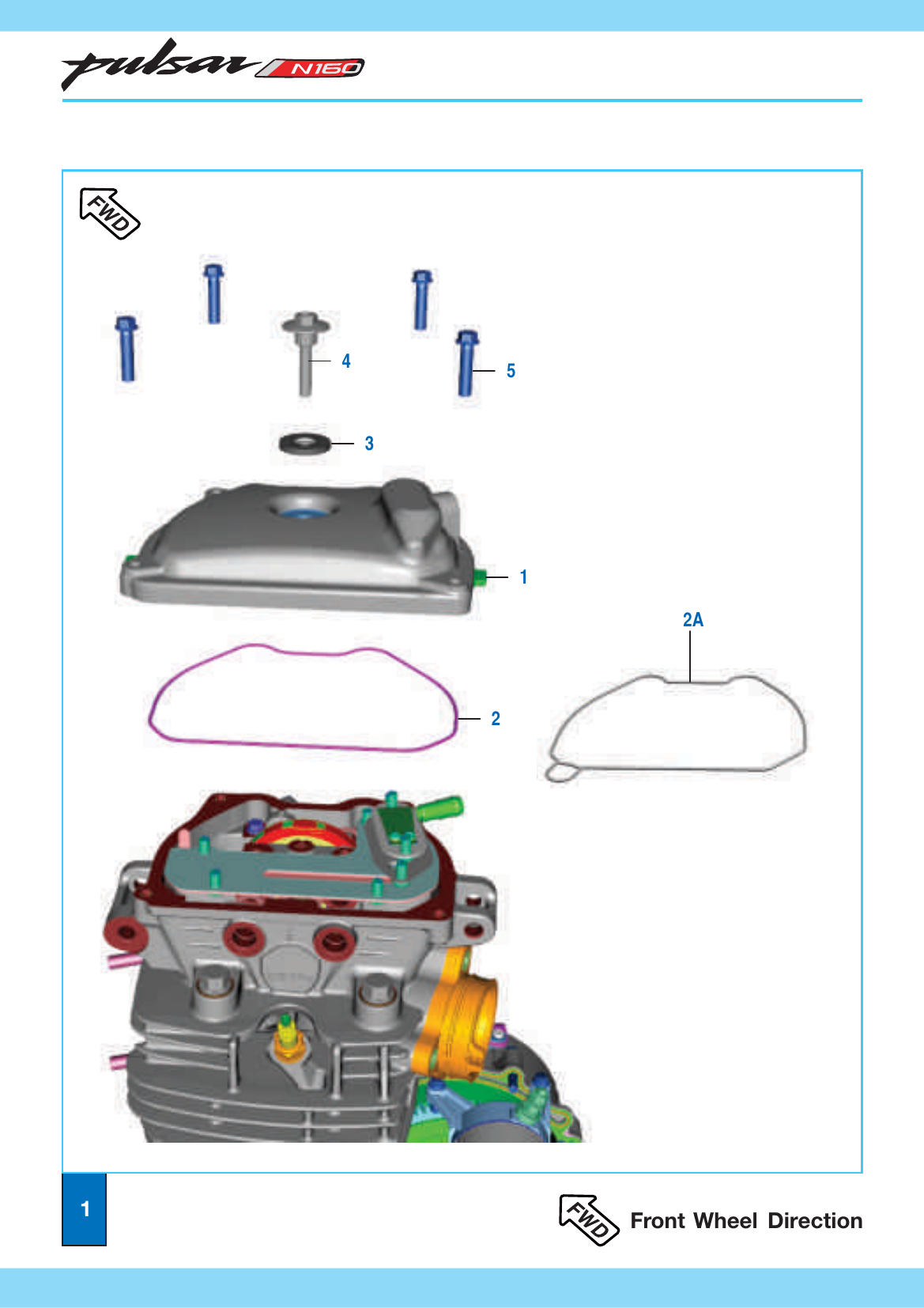

Plate 1
Cover Cylinder Head
PD511536
Cover Head Cylinder
Ref 11
PD511178
Gasket Cover Head Cylinder
Ref 21
PD511644
Gasket Cover Head Cylinder
Ref 2A1
JG511021
Washer
Ref 31
LAE00033
Bolt Flanged Step M6x1
Ref 41
KAED0625
Bolt Flanged M6x1
Ref 54
PD511536
Cover Assembly Head Cylinder
Ref 61
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PD511536 | Cover Head Cylinder | — | 1 | |
| 2 | PD511178 | Gasket Cover Head Cylinder | — | 1 | |
| 2A | PD511644 | Gasket Cover Head Cylinder | — | 1 | |
| 3 | JG511021 | Washer | — | 1 | |
| 4 | LAE00033 | Bolt Flanged Step M6x1 | — | 1 | |
| 5 | KAED0625 | Bolt Flanged M6x1 | — | 4 | |
| 6 | PD511536 | Cover Assembly Head Cylinder | — | 1 |
Showing 7 parts in Plate 1
Plate 1
Cover Cylinder Head
PD511536
Cover Head Cylinder
Ref 11
PD511178
Gasket Cover Head Cylinder
Ref 21
PD511644
Gasket Cover Head Cylinder
Ref 2A1
JG511021
Washer
Ref 31
LAE00033
Bolt Flanged Step M6x1
Ref 41
KAED0625
Bolt Flanged M6x1
Ref 54
PD511536
Cover Assembly Head Cylinder
Ref 61
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PD511536 | Cover Head Cylinder | — | 1 | |
| 2 | PD511178 | Gasket Cover Head Cylinder | — | 1 | |
| 2A | PD511644 | Gasket Cover Head Cylinder | — | 1 | |
| 3 | JG511021 | Washer | — | 1 | |
| 4 | LAE00033 | Bolt Flanged Step M6x1 | — | 1 | |
| 5 | KAED0625 | Bolt Flanged M6x1 | — | 4 | |
| 6 | PD511536 | Cover Assembly Head Cylinder | — | 1 |
Showing 7 parts in Plate 1
