BAJAJ

PULSAR AS 150 NS 150 SPC REV 06

934 parts across 55 plates

Color (Transition)Doc: 71112065Rev: REV. 06Date: 2016-03-0155 plates · 38 kits · 28 revisions

+43 more

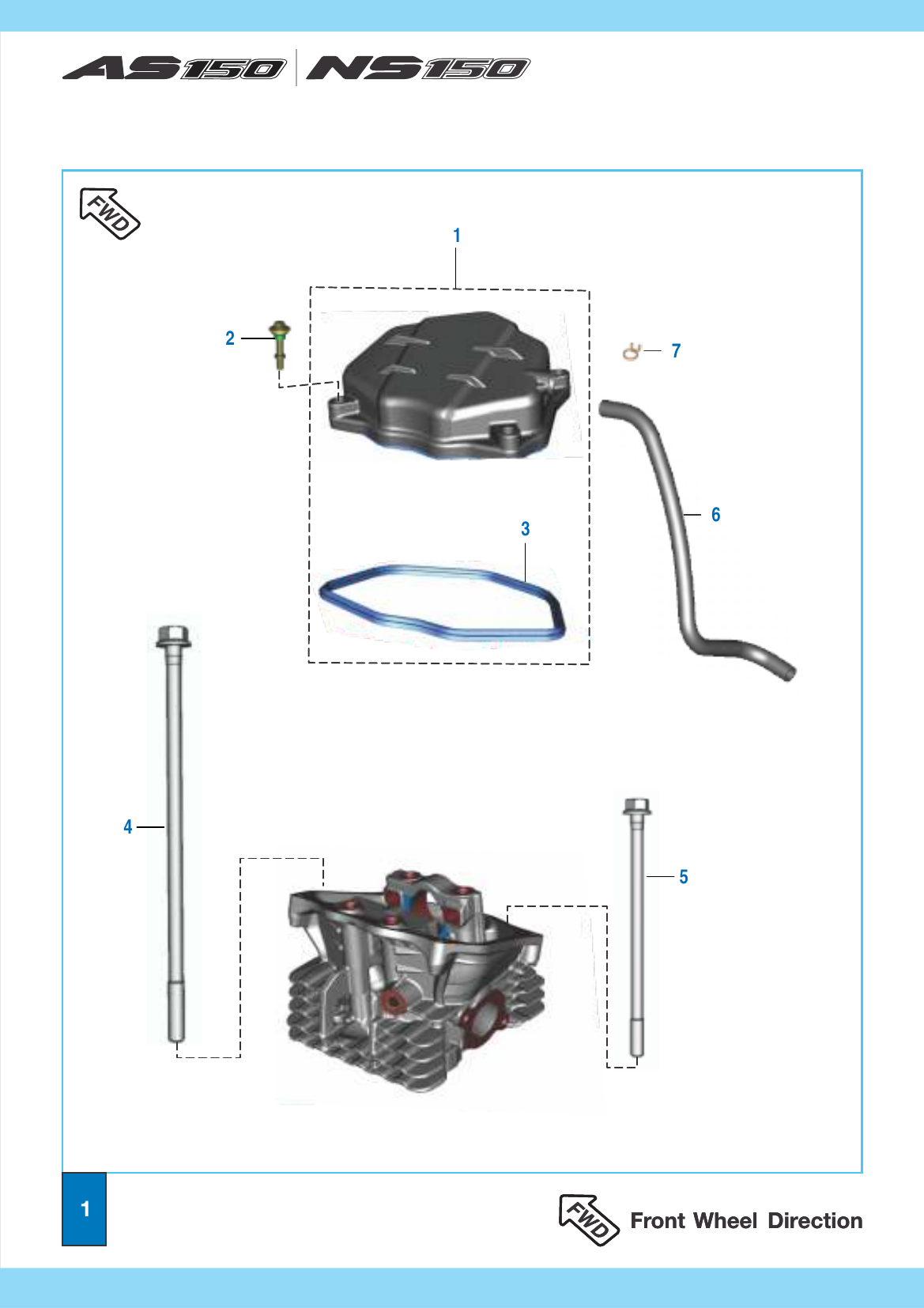

Plate 1

Cover Cylinder Head

7 parts

52 JE00 74

Assly Head Cover

Ref 1NS: 1 · AS: 1

JE 5110 53

Bolt

Ref 2NS: 4 · AS: 4

JE 5110 38

Gasket Head Cover

Ref 3NS: 1 · AS: 1

JE 5110 47

Bolt Head Mounting

Ref 4NS: 4 · AS: 4

59 0400 50

Flanged Bolt M8X1.25X148L

Ref 5NS: 1 · AS: 1

JE 5810 11

Tube Breather

Ref 6NS: 1 · AS: 1

JG 5810 56

Clamp

Ref 7NS: 2 · AS: 22 2

Ref	Part #	Description	NS	AS	Remarks
1	52 JE00 74	Assly Head Cover	1	1
2	JE 5110 53	Bolt	4	4
3	JE 5110 38	Gasket Head Cover	1	1
4	JE 5110 47	Bolt Head Mounting	4	4
5	59 0400 50	Flanged Bolt M8X1.25X148L	1	1
6	JE 5810 11	Tube Breather	1	1
7	JG 5810 56	Clamp	2	2	2 2

Showing 7 parts in Plate 1
