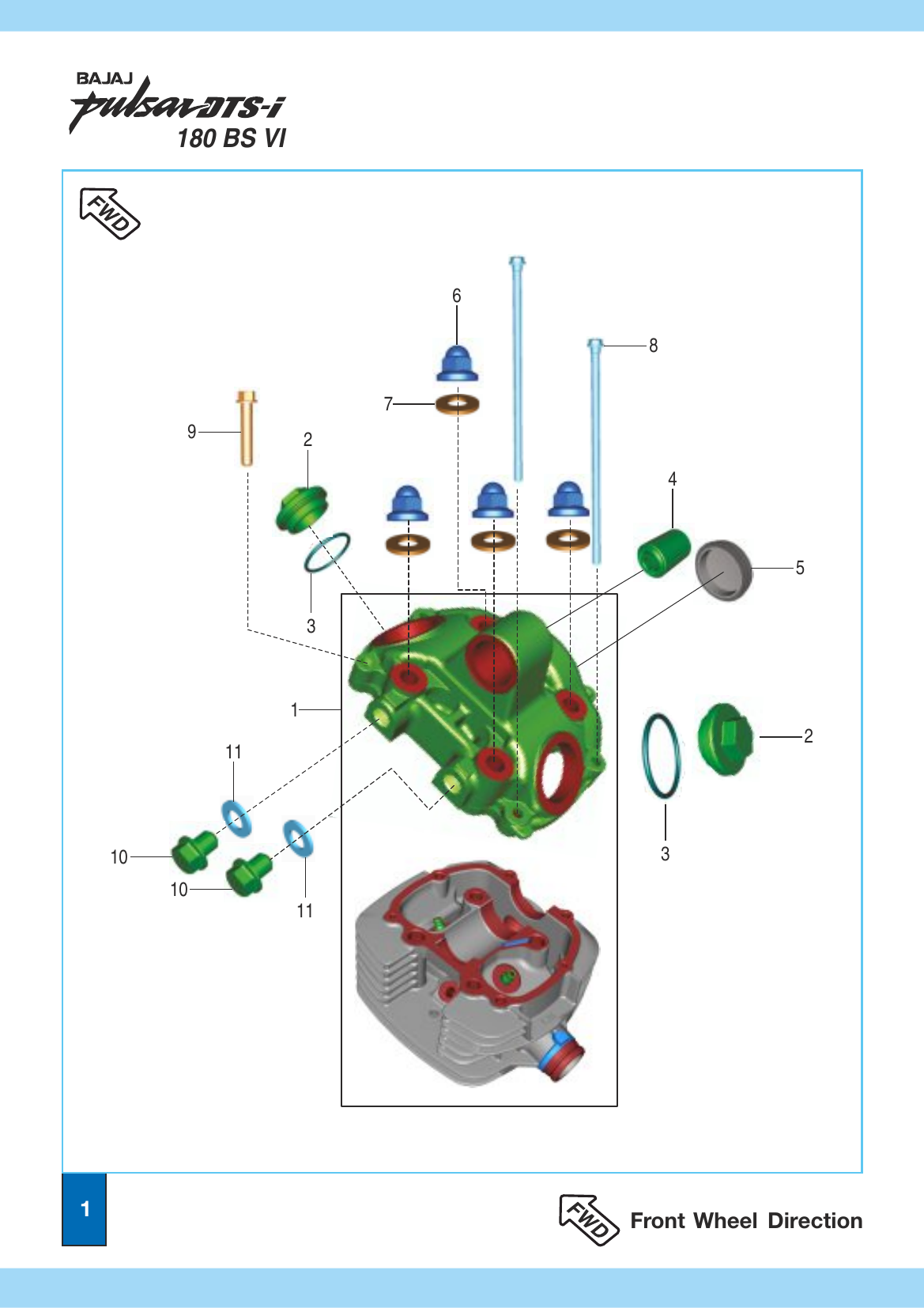

Plate 1

Cover Cylinder Head

11 parts

DJ 1018 11

Head Cylinder - Cover Assembly

Ref 11

DH 1019 16

Bolt

Ref 102

DG 1014 98

Gasket

Ref 112 2 2

52 JN01 36

Cover Tappet

Ref 22

36 DS10 01

‘O’ Ring Kit For Cover Cylinder Head

Ref 31

DS 1011 66

Silent Bush

Ref 41

DH 1022 01

Camshaft Cap

Ref 51

39 2647 15

Domed Cap Nut

Ref 64

DS 1010 84

Copper Washer

Ref 74

39 2532 04

Hex. Bolt with Flange

Ref 82

KA ED06 35 Bolt flanged small

(no description)

Ref 94

Ref	Part #	Description	Qty.	Remarks
1	DJ 1018 11	Head Cylinder - Cover Assembly	—	1
10	DH 1019 16	Bolt	—	2
11	DG 1014 98	Gasket	—	2 2 2
2	52 JN01 36	Cover Tappet	—	2
3	36 DS10 01	‘O’ Ring Kit For Cover Cylinder Head	—	1
4	DS 1011 66	Silent Bush	—	1
5	DH 1022 01	Camshaft Cap	—	1
6	39 2647 15	Domed Cap Nut	—	4
7	DS 1010 84	Copper Washer	—	4
8	39 2532 04	Hex. Bolt with Flange	—	2
9	KA ED06 35 Bolt flanged small	(no description)	—	4

Showing 11 parts in Plate 1
