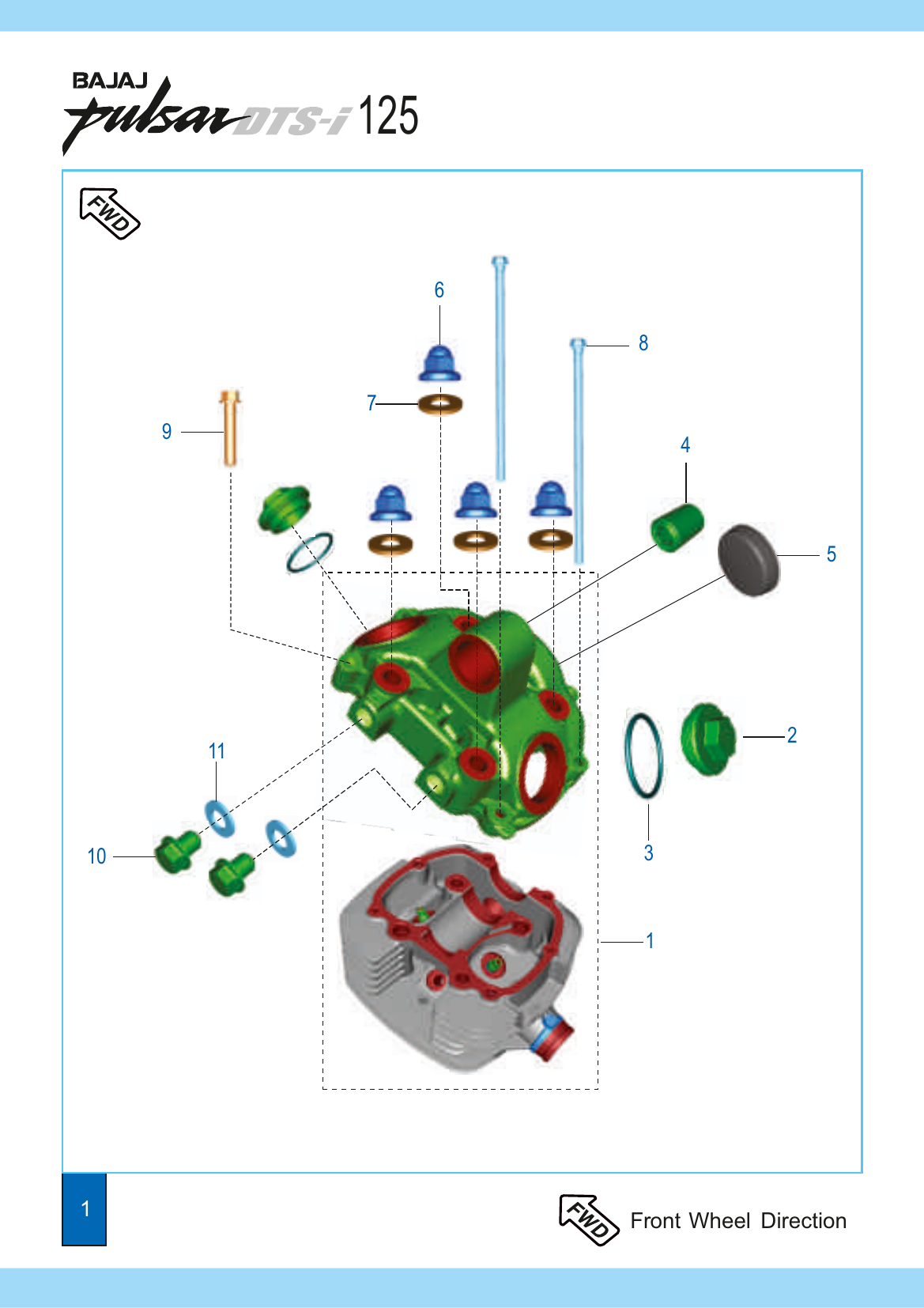

Plate 1
Cover Cylinder Head
DH 1025 45
Kit cylinder head with cover
Ref 1Qty.: 11 Refer kit list
52 DH55 78
Cylinder head with cover
Ref 1Qty.: 11 For OBD2
DH 1019 16
Bolt flange - M12
Ref 10Qty.: 22
DG 1014 98
Gasket
Ref 11Qty.: 22 2 2
52 JN01 36
Cover Tappet with ‘O’ ring
Ref 2Qty.: 22 Refer kit list
39 2391 21
‘O’ Ring
Ref 3Qty.: 22
DS 1011 66
Silent Bush (V)
Ref 4Qty.: 11
DH 1022 01
Camshaft Cap
Ref 5Qty.: 11
39 2647 15
Domed Cap Nut
Ref 6Qty.: 44
DS 1010 84
Copper Gasket
Ref 7Qty.: 44
39 2532 04
Hex. Bolt With Flange
Ref 8Qty.: 22
KA ED06 35
Bolt flanged small
Ref 9Qty.: 44
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | DH 1025 45 | Kit cylinder head with cover | 1 | 1 Refer kit list | |
| 1 var. of 1 | 52 DH55 78 | Cylinder head with cover | 1 | 1 For OBD2 | |
| 10 | DH 1019 16 | Bolt flange - M12 | 2 | 2 | |
| 11 | DG 1014 98 | Gasket | 2 | 2 2 2 | |
| 2 | 52 JN01 36 | Cover Tappet with ‘O’ ring | 2 | 2 Refer kit list | |
| 3 | 39 2391 21 | ‘O’ Ring | 2 | 2 | |
| 4 | DS 1011 66 | Silent Bush (V) | 1 | 1 | |
| 5 | DH 1022 01 | Camshaft Cap | 1 | 1 | |
| 6 | 39 2647 15 | Domed Cap Nut | 4 | 4 | |
| 7 | DS 1010 84 | Copper Gasket | 4 | 4 | |
| 8 | 39 2532 04 | Hex. Bolt With Flange | 2 | 2 | |
| 9 | KA ED06 35 | Bolt flanged small | 4 | 4 |
Showing 12 parts in Plate 1
