BAJAJ
OBD2 SPC PULSAR P150 REV01
1081 parts across 58 plates
ColorDoc: 71120192Rev: REV. 01Date: 2023-04-0158 plates · 34 kits · 3 revisions

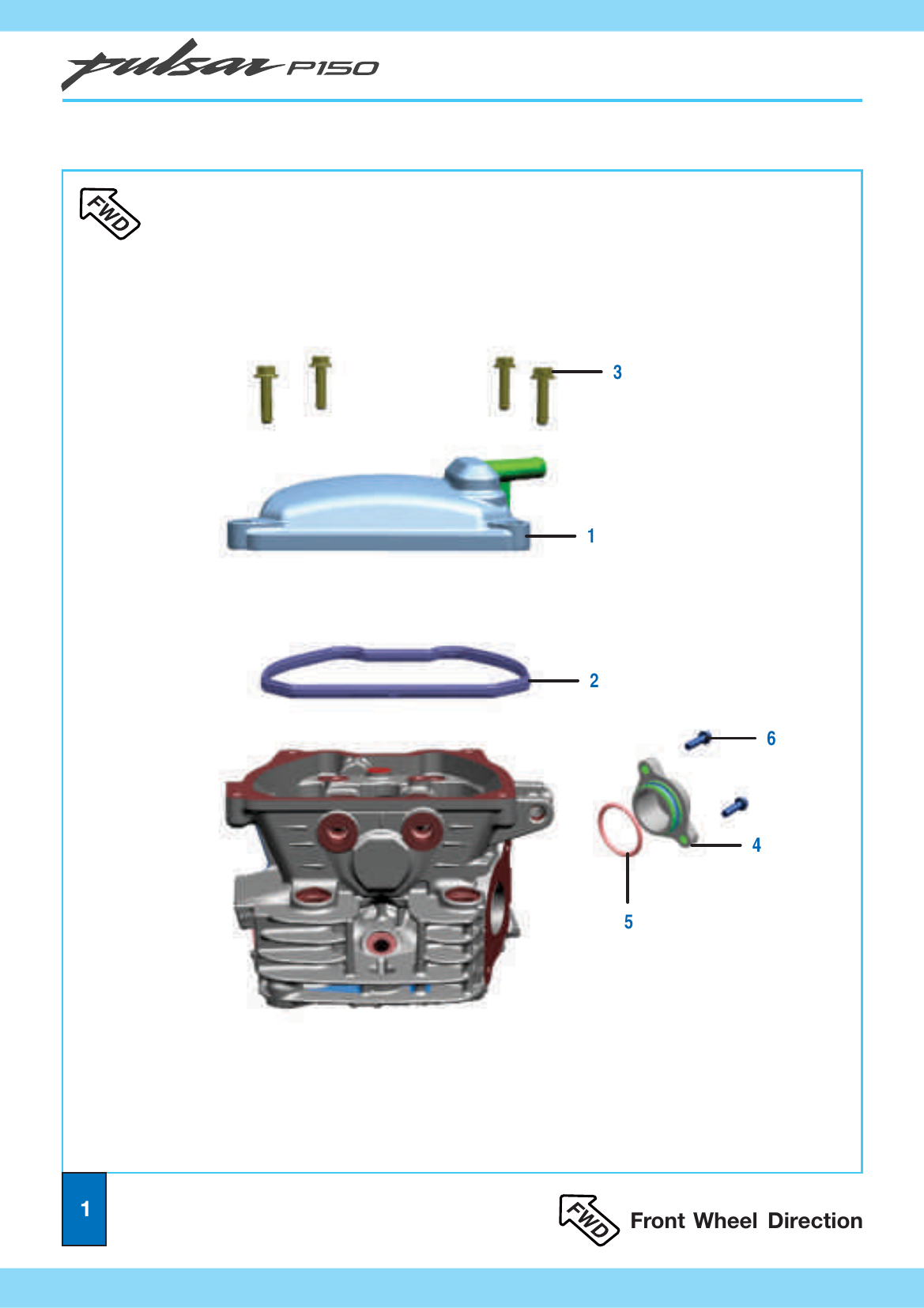

Plate 1
Cover Cylinder Head
PD511576
Cover Assly Head Cylinder
Ref 11
PD511573
Gasket Cover Head Cylinder
Ref 21
KADD0625
Bolt Flanged M6x1
Ref 34
52PD1621
Cap Cam Sprocket With O' Ring
Ref 41
KJAC3535
O Ring
Ref 51
KAED0620
Bolt
Ref 62
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PD511576 | Cover Assly Head Cylinder | — | 1 | |
| 2 | PD511573 | Gasket Cover Head Cylinder | — | 1 | |
| 3 | KADD0625 | Bolt Flanged M6x1 | — | 4 | |
| 4 | 52PD1621 | Cap Cam Sprocket With O' Ring | — | 1 | |
| 5 | KJAC3535 | O Ring | — | 1 | |
| 6 | KAED0620 | Bolt | — | 2 |
Showing 6 parts in Plate 1
