BAJAJ
NEW PLATINA 110 FI REV 00
738 parts across 49 plates
ColorRev: REV. 00Date: 2025-04-0149 plates · 32 kits · 0 revisions

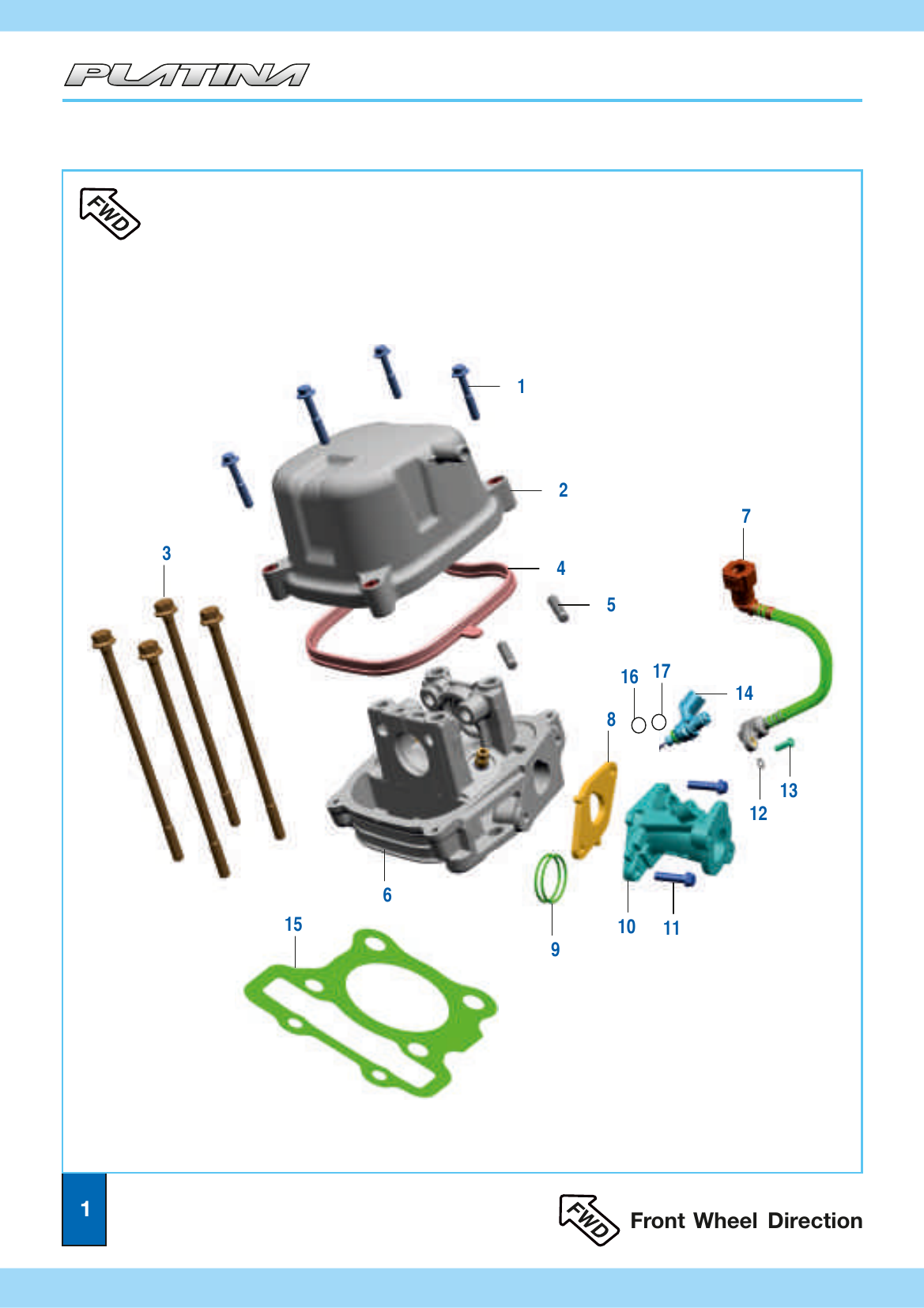

Plate 1
Cylinder Head & Intake Manifold
JV541007
Bolt Flanged M6x1
Ref 1Qty.: 4
52PF3353
Manifold Intake
Ref 10Qty.: 1
KAED0625
Bolt Flanged M6x1
Ref 11Qty.: 1
KDAA0408
Washer Plain Small
Ref 12Qty.: 1
KBBA0412
Screw Pan Cross M4x0.7
Ref 13Qty.: 1
DY611000
Injector
Ref 14Qty.: 1
PF511593
Gasket Head cylinder
Ref 15Qty.: 1
YPF34001
O-ring Injector
Ref 16Qty.: 1
YPF34002
Seal Ring Injector
Ref 17Qty.: 1
PF511603
Cover Head Cylinder
Ref 2Qty.: 1
PA511029
Bolt Flanged M8x1.25
Ref 3Qty.: 4
PF511609
Gasket Cover Head Cylinder
Ref 4Qty.: 1
LAJ00034
Bolt Stud M8x1.25
Ref 5Qty.: 2
52PF3395
Head Cylinder
Ref 6Qty.: 1
PF611220
Cap Injector-connector Quick
Ref 7Qty.: 1
PF581466
Insulator
Ref 8Qty.: 1
LJA00003
Ring O
Ref 9Qty.: 2
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV541007 | Bolt Flanged M6x1 | 4 | ||
| 10 | 52PF3353 | Manifold Intake | 1 | ||
| 11 | KAED0625 | Bolt Flanged M6x1 | 1 | ||
| 12 | KDAA0408 | Washer Plain Small | 1 | ||
| 13 | KBBA0412 | Screw Pan Cross M4x0.7 | 1 | ||
| 14 | DY611000 | Injector | 1 | ||
| 15 | PF511593 | Gasket Head cylinder | 1 | ||
| 16 | YPF34001 | O-ring Injector | 1 | ||
| 17 | YPF34002 | Seal Ring Injector | 1 | ||
| 2 | PF511603 | Cover Head Cylinder | 1 | ||
| 3 | PA511029 | Bolt Flanged M8x1.25 | 4 | ||
| 4 | PF511609 | Gasket Cover Head Cylinder | 1 | ||
| 5 | LAJ00034 | Bolt Stud M8x1.25 | 2 | ||
| 6 | 52PF3395 | Head Cylinder | 1 | ||
| 7 | PF611220 | Cap Injector-connector Quick | 1 | ||
| 8 | PF581466 | Insulator | 1 | ||
| 9 | LJA00003 | Ring O | 2 |
Showing 17 parts in Plate 1
