BAJAJ
FREEDOM 125 NG04 REV00
1000 parts across 57 plates
ColorDoc: 71120218Rev: REV. 00Date: 2024-07-0157 plates · 26 kits · 0 revisions

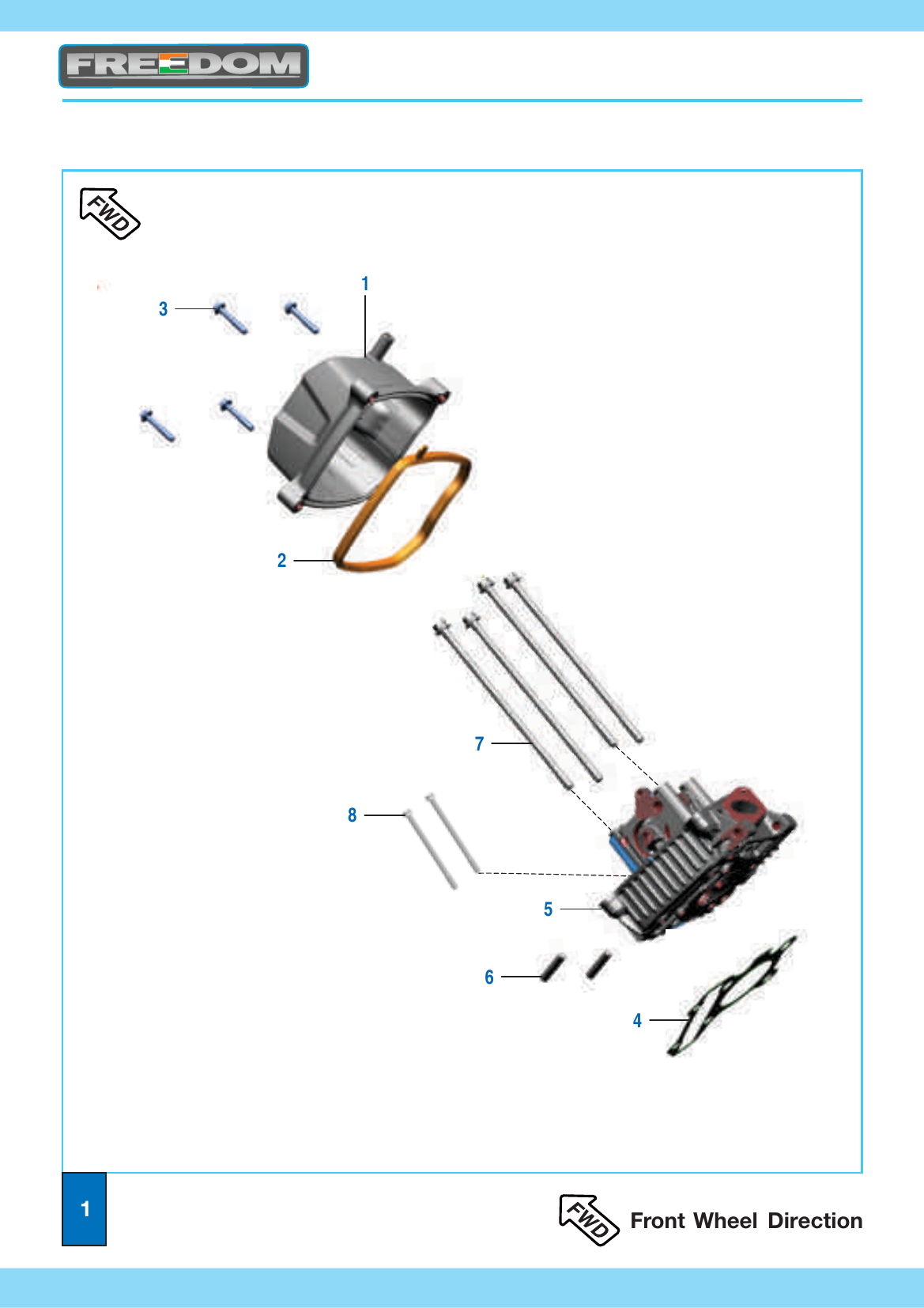

Plate 1
Cylinder Head & Cover
PF511619
Cover Assembly Head Cylinder
Ref 11
PF511621
Gasket Cover Head Cylinder
Ref 21
JV541007
Bolt Flanged M6x1
Ref 34
PF511632
Gasket Head Cylinder
Ref 41
52PF3192
Head Cylinder
Ref 51
LAJ00034
Bolt Stud M8x1.25
Ref 62
JE511047
Bolt Cylinder Head K11
Ref 74
JA511005
Bolt
Ref 82
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PF511619 | Cover Assembly Head Cylinder | — | 1 | |
| 2 | PF511621 | Gasket Cover Head Cylinder | — | 1 | |
| 3 | JV541007 | Bolt Flanged M6x1 | — | 4 | |
| 4 | PF511632 | Gasket Head Cylinder | — | 1 | |
| 5 | 52PF3192 | Head Cylinder | — | 1 | |
| 6 | LAJ00034 | Bolt Stud M8x1.25 | — | 2 | |
| 7 | JE511047 | Bolt Cylinder Head K11 | — | 4 | |
| 8 | JA511005 | Bolt | — | 2 |
Showing 8 parts in Plate 1
