BAJAJ
DOMINAR 250 BS VI REV 10
1239 parts across 59 plates
ColorDoc: 71120159Rev: REV. 10Date: 2025-01-0159 plates · 17 kits · 14 revisions

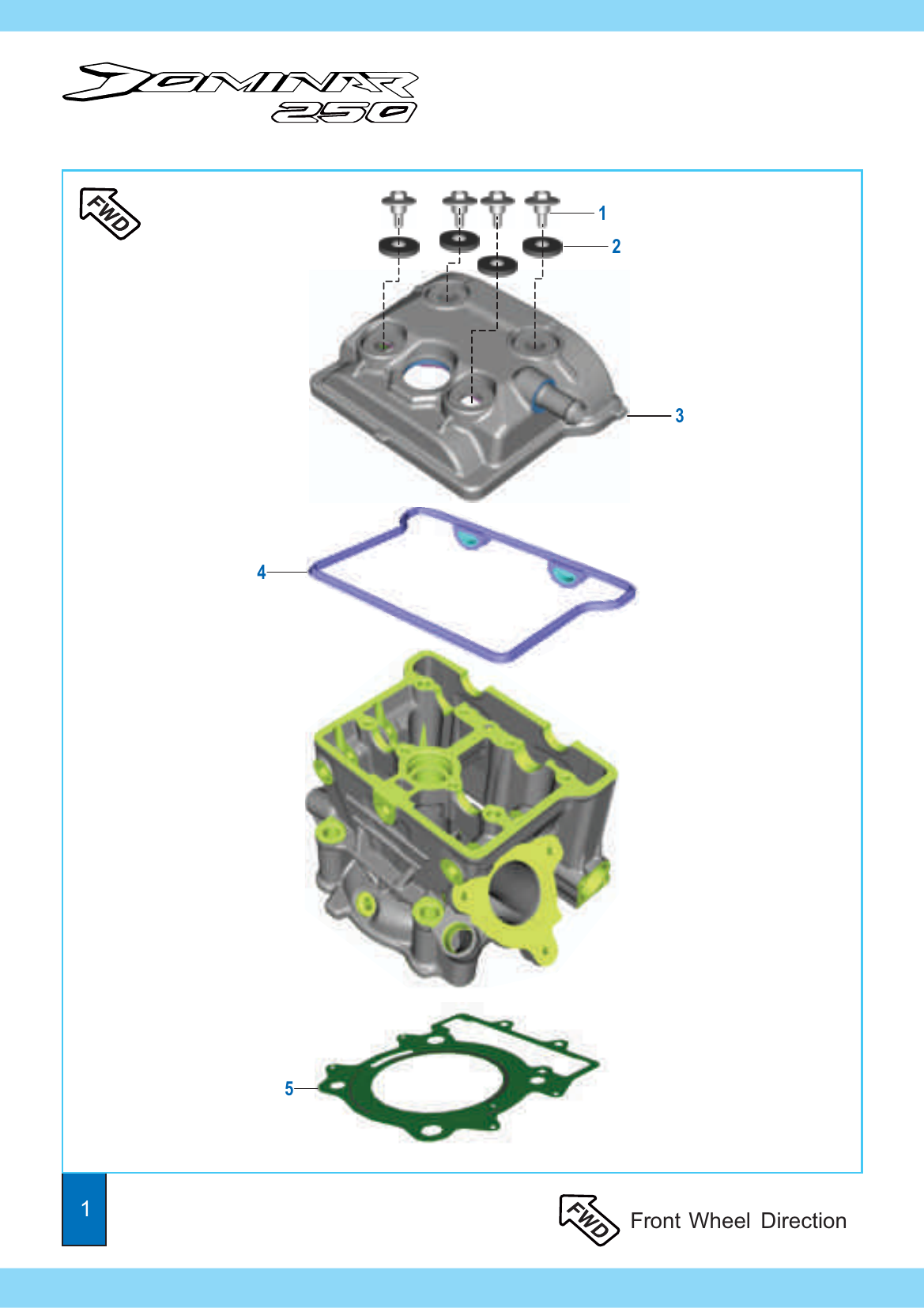

Plate 1
Cover Cylinder Head
JG 5110 22
Bolt Special
Ref 14
JG 5110 21
Washer
Ref 24
DT 5110 27
Cylinder Head Cover Assembly
Ref 31
JY 5111 28
Gasket Rubber - Head Cover
Ref 41
JY 5111 49
Gasket Head Cylinder
Ref 51
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JG 5110 22 | Bolt Special | — | 4 | |
| 2 | JG 5110 21 | Washer | — | 4 | |
| 3 | DT 5110 27 | Cylinder Head Cover Assembly | — | 1 | |
| 4 | JY 5111 28 | Gasket Rubber - Head Cover | — | 1 | |
| 5 | JY 5111 49 | Gasket Head Cylinder | — | 1 |
Showing 5 parts in Plate 1
