BAJAJ
DISCOVER DTS I 135 CC
806 parts across 52 plates
Color (Transition)Doc: 71110712Rev: REV. 00Date: 2008-10-0152 plates · 0 kits · 0 revisions

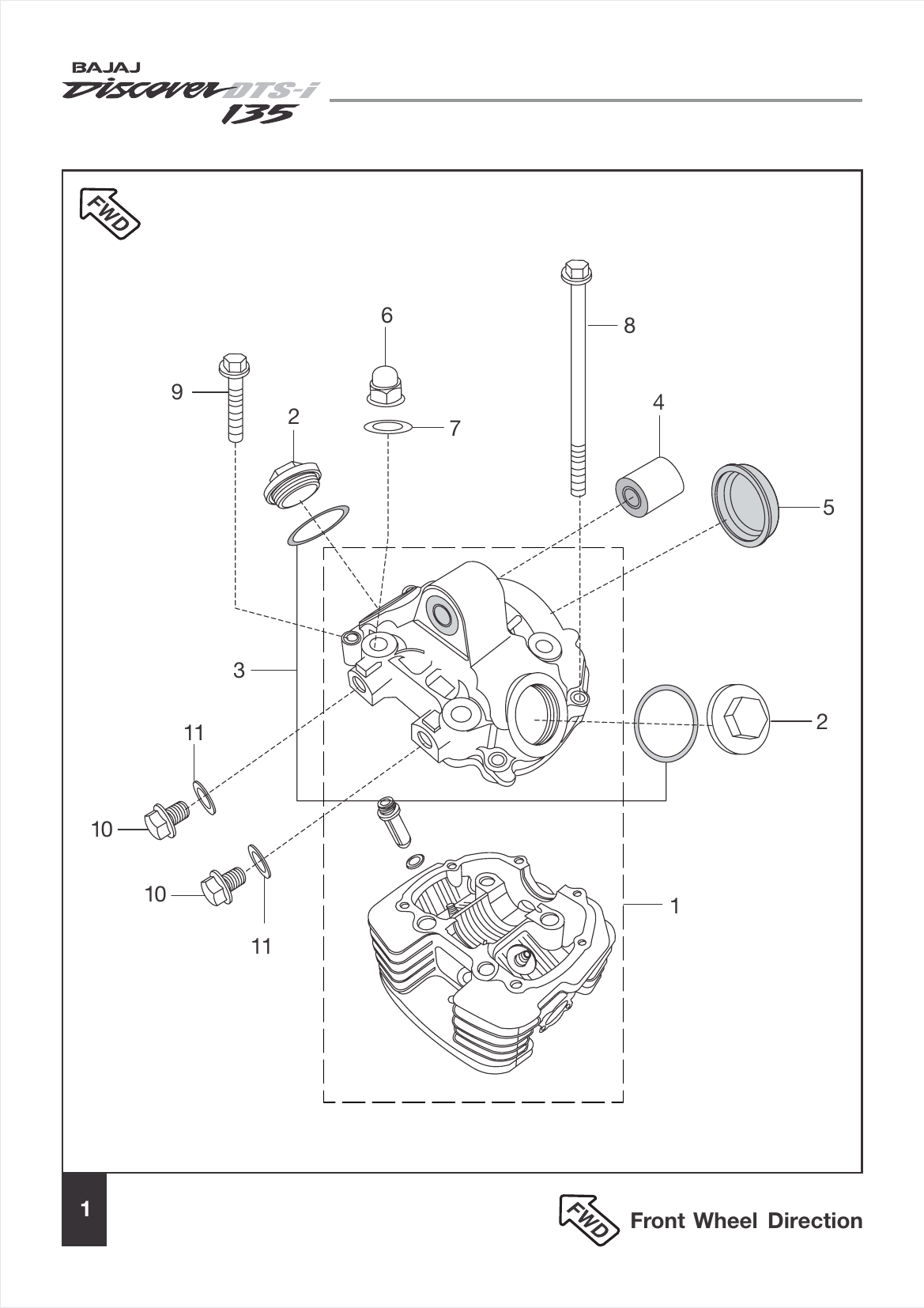

Plate 1
Cover Cylinder Head
JN 5110 06
Head Cylinder with Cover
Ref 1Qty.: 11 1
DH 1012 72
Plug
Ref 10Qty.: 11 1
DG 1014 98
Gasket
Ref 11Qty.: 22 2
DJ 1012 17
Cover Tappet
Ref 2Qty.: 22 2
36 DS10 01
‘O’ Ring Kit for Cover Cyl. Head
Ref 3Qty.: 11 1 Refer Page No. 117
DS 1011 93
Bush Cylinder Head Cover
Ref 4Qty.: 11 1
DS 1010 96
Camshaft Cap
Ref 5Qty.: 11 1
39 2647 15
Domed Cap Nut
Ref 6Qty.: 44 4
DS 1010 84
Copper Washer
Ref 7Qty.: 44 4
39 2532 04
Bolt Flange Small
Ref 8Qty.: 22 2
39 1075 04
Bolt Flange Small
Ref 9Qty.: 44 4
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JN 5110 06 | Head Cylinder with Cover | 1 | 1 1 | |
| 10 | DH 1012 72 | Plug | 1 | 1 1 | |
| 11 | DG 1014 98 | Gasket | 2 | 2 2 | |
| 2 | DJ 1012 17 | Cover Tappet | 2 | 2 2 | |
| 3 | 36 DS10 01 | ‘O’ Ring Kit for Cover Cyl. Head | 1 | 1 1 Refer Page No. 117 | |
| 4 | DS 1011 93 | Bush Cylinder Head Cover | 1 | 1 1 | |
| 5 | DS 1010 96 | Camshaft Cap | 1 | 1 1 | |
| 6 | 39 2647 15 | Domed Cap Nut | 4 | 4 4 | |
| 7 | DS 1010 84 | Copper Washer | 4 | 4 4 | |
| 8 | 39 2532 04 | Bolt Flange Small | 2 | 2 2 | |
| 9 | 39 1075 04 | Bolt Flange Small | 4 | 4 4 |
