BAJAJ

DISCOVER 150S 150F REV04

874 parts across 54 plates

Color (Transition)Doc: 71111990Rev: REV. 04Date: 2015-05-0154 plates · 36 kits · 23 revisions

+42 more

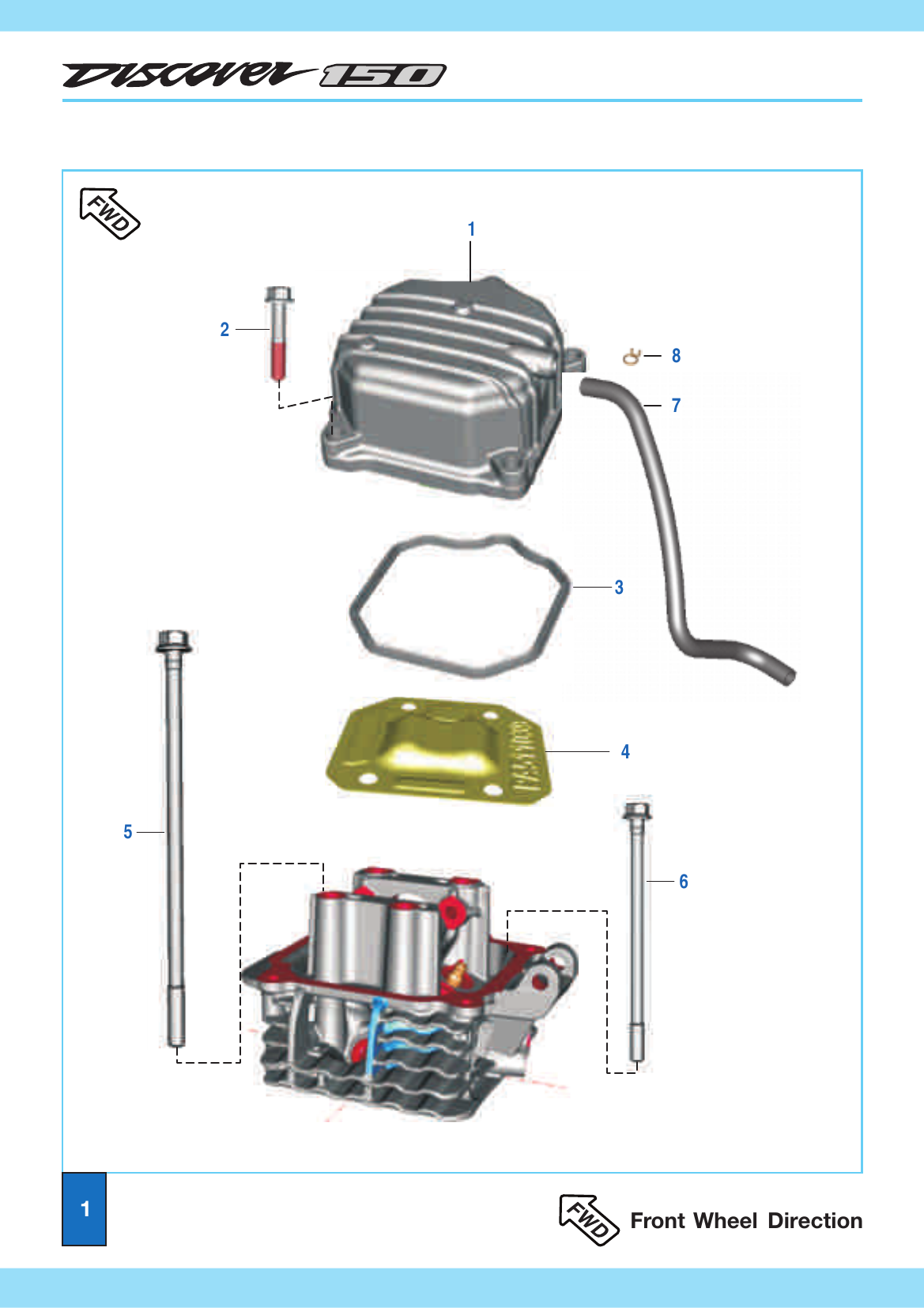

Plate 1

Cover Cylinder Head

8 parts

JE 5110 12

Assly Cylinder Head Cover

Ref 1150S: 1 · 150F: 1With Gasket

JE 5110 53

Bolt

Ref 2150S: 4 · 150F: 4

JE 5110 22

Gasket Head Cover

Ref 3150S: 1 · 150F: 1

JE 5110 76

Plate Cylinder Head

Ref 4150S: 1 · 150F: 1

JA 5110 08

Bolt Head Mounting

Ref 5150S: 4 · 150F: 4

59 0400 50

Flanged Bolt M8X1.25X148L

Ref 6150S: 1 · 150F: 1

JZ 5810 26

Tube Breather

Ref 7150S: 1 · 150F: 1

DG 1210 25

Clamp

Ref 8150S: 2 · 150F: 2

Ref	Part #	Description	150S	150F	Remarks
1	JE 5110 12	Assly Cylinder Head Cover	1	1	With Gasket
2	JE 5110 53	Bolt	4	4
3	JE 5110 22	Gasket Head Cover	1	1
4	JE 5110 76	Plate Cylinder Head	1	1
5	JA 5110 08	Bolt Head Mounting	4	4
6	59 0400 50	Flanged Bolt M8X1.25X148L	1	1
7	JZ 5810 26	Tube Breather	1	1
8	DG 1210 25	Clamp	2	2
