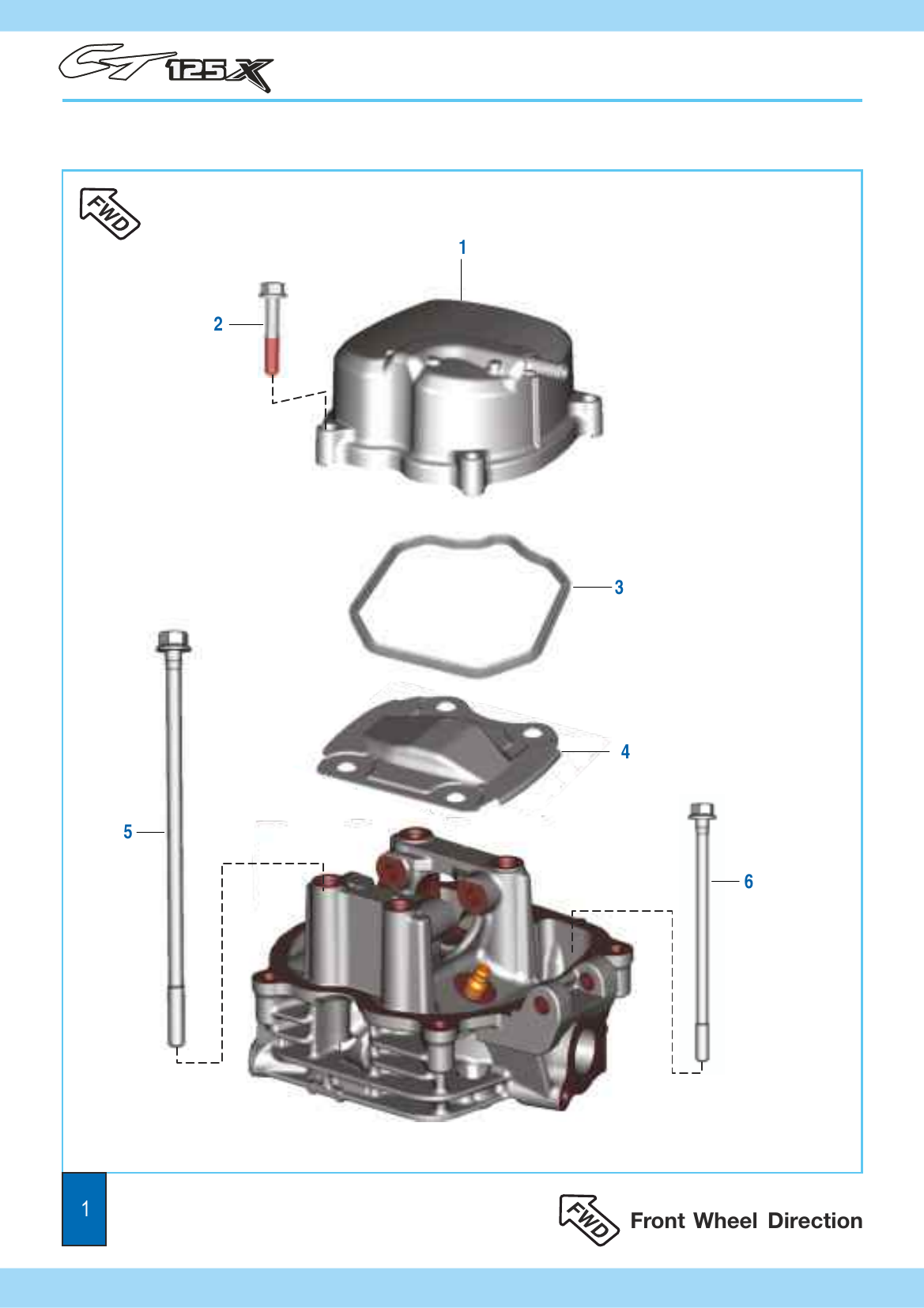

Plate 1
Cover Cylinder Head
JZ 5110 21
Cover Cylinder Head Complete
Ref 1Qty.: 1
JV 5410 07
Bolt flanged
Ref 2Qty.: 4
JD 5110 10
Gasket Cylinder Head Cover
Ref 3Qty.: 1
PA 5110 39
Plate Cylinder Head
Ref 4Qty.: 1
JA 5110 08
Bolt Head Mounting - M8 x 1.25 x 190L
Ref 5Qty.: 4
59 0400 50
Bolt Head Mtg
Ref 6Qty.: 1
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JZ 5110 21 | Cover Cylinder Head Complete | 1 | ||
| 2 | JV 5410 07 | Bolt flanged | 4 | ||
| 3 | JD 5110 10 | Gasket Cylinder Head Cover | 1 | ||
| 4 | PA 5110 39 | Plate Cylinder Head | 1 | ||
| 5 | JA 5110 08 | Bolt Head Mounting - M8 x 1.25 x 190L | 4 | ||
| 6 | 59 0400 50 | Bolt Head Mtg | 1 |
Showing 6 parts in Plate 1
