BAJAJ

CT 100 ES KS BS VI UG REV 05

847 parts across 49 plates

ColorDoc: 71120144Rev: REV. 05Date: 2020-11-0149 plates · 5 kits · 7 revisions

+37 more

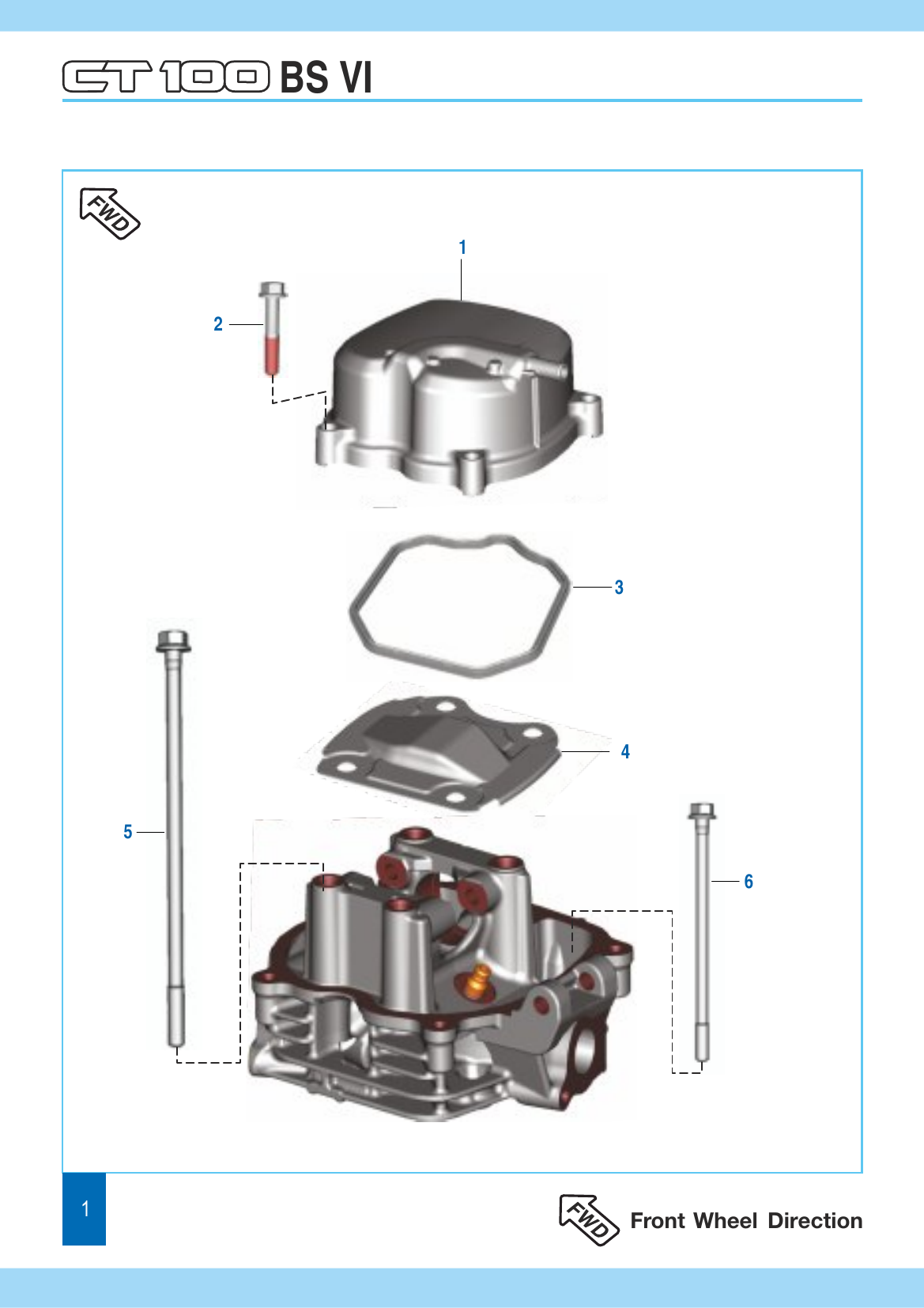

Plate 1

Cover Cylinder Head

6 parts

JV 5110 13

Cover Cylinder Head Complete

Ref 1Qty.: 1

JV 5410 07

Bolt flanged - M6 x 1 x L35

Ref 2Qty.: 4

JV 5110 12

Gasket Cylinder Head Cover

Ref 3Qty.: 1

JV 5110 11

Plate Cylinder Head

Ref 4Qty.: 1

JB 5110 11

Bolt Head Mounting - M8 x 1.25 x 190L

Ref 5Qty.: 4

JB 5110 15

Bolt Head Mtg

Ref 6Qty.: 1

Ref	Part #	Description	Qty.
1	JV 5110 13	Cover Cylinder Head Complete	1
2	JV 5410 07	Bolt flanged - M6 x 1 x L35	4
3	JV 5110 12	Gasket Cylinder Head Cover	1
4	JV 5110 11	Plate Cylinder Head	1
5	JB 5110 11	Bolt Head Mounting - M8 x 1.25 x 190L	4
6	JB 5110 15	Bolt Head Mtg	1

Showing 6 parts in Plate 1
