BAJAJ
BAJAJ AVENGER 200 DTS I
754 parts across 50 plates
Line ArtDoc: 71110579Rev: REV. 00Date: 2008-09-0150 plates · 12 kits · 0 revisions

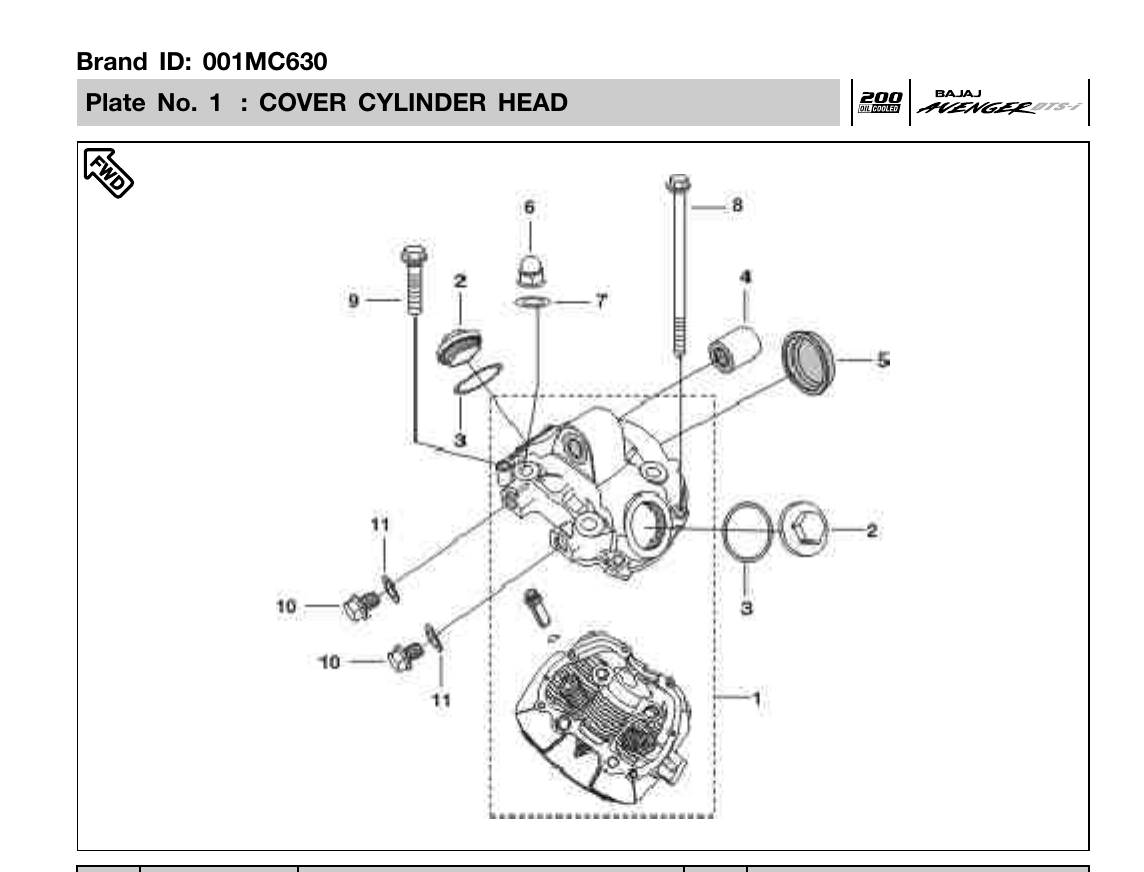

Plate 1
COVER CYLINDER HEAD
JM 1000 42
Head Cylinder with Cover
Ref 1Qty/: 1
DH 1012 72
Plug
Ref 10Qty/: 2
31 1011 06
Gasket
Ref 11Qty/: 2
DJ 1012 17
Cover Tappet
Ref 2Qty/: 2
36 DS10 01
‘O’ Ring Kit for Cover Cyl. Head
Ref 3Qty/: 1Refer Page No. 63
DS 1011 66
Silent Bush (V)
Ref 4Qty/: 1
DS 1010 96
Camshaft Cap
Ref 5Qty/: 1
39 2647 15
Domed Cap Nut
Ref 6Qty/: 4
DS 1010 84
Copper gasket
Ref 7Qty/: 4
39 2532 04
Hex. Bolt with Flange
Ref 8Qty/: 2
39 1075 04
Hex. Bolt with Flange
Ref 9Qty/: 4
| Ref | Part # | Description | Qty/ | Remarks | |
|---|---|---|---|---|---|
| 1 | JM 1000 42 | Head Cylinder with Cover | 1 | ||
| 10 | DH 1012 72 | Plug | 2 | ||
| 11 | 31 1011 06 | Gasket | 2 | ||
| 2 | DJ 1012 17 | Cover Tappet | 2 | ||
| 3 | 36 DS10 01 | ‘O’ Ring Kit for Cover Cyl. Head | 1 | Refer Page No. 63 | |
| 4 | DS 1011 66 | Silent Bush (V) | 1 | ||
| 5 | DS 1010 96 | Camshaft Cap | 1 | ||
| 6 | 39 2647 15 | Domed Cap Nut | 4 | ||
| 7 | DS 1010 84 | Copper gasket | 4 | ||
| 8 | 39 2532 04 | Hex. Bolt with Flange | 2 | ||
| 9 | 39 1075 04 | Hex. Bolt with Flange | 4 |
Showing 11 parts in Plate 1
