BAJAJ

AVENGER 180 STREET REV 05

828 parts across 52 plates

Color (Transition)Doc: 71120097Rev: REV. 05Date: 2019-02-0152 plates · 21 kits · 7 revisions

+40 more

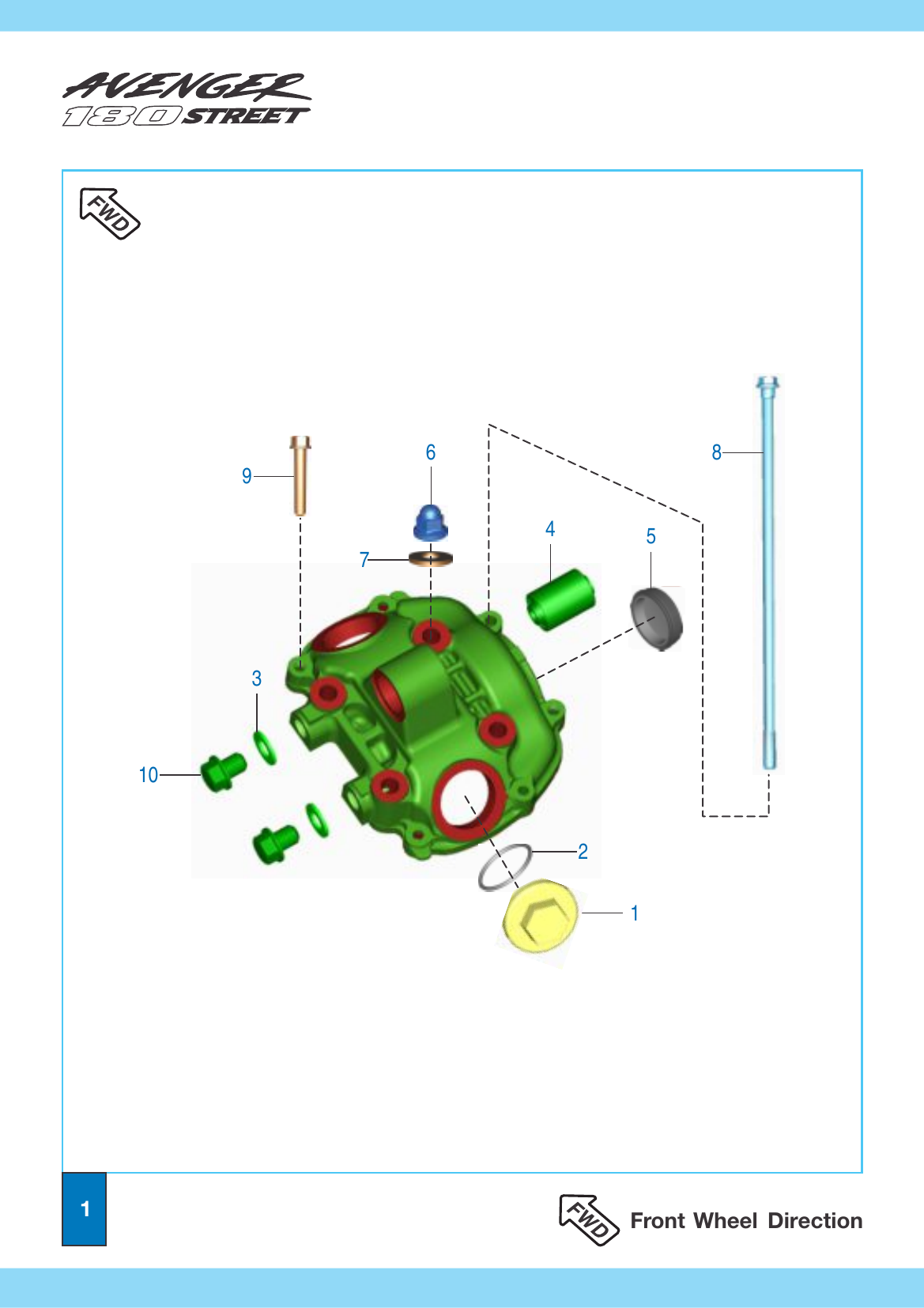

Plate 1

Cover Cylinder Head

10 parts

PD 5110 25

Cover Tappet

Ref 12

DH 1019 16

Bolt M12

Ref 102 2 2

39 2391 21

‘O’ Ring

Ref 22

DG 1014 98

Gasket (Washer)

Ref 32

DS 1011 66

Silent Bush (V)

Ref 41

DH 1022 01

Camshaft Cap

Ref 51

39 2647 15

Domed Cap Nut

Ref 64

DS 1010 84

Copper Gasket (Washer)

Ref 74

39 2532 04

Hex hd bolt flange - M6

Ref 82

39 1075 04

Hex. Bolt with Flange M6 x 35

Ref 94

Ref	Part #	Description	Qty.	Remarks
1	PD 5110 25	Cover Tappet	—	2
10	DH 1019 16	Bolt M12	—	2 2 2
2	39 2391 21	‘O’ Ring	—	2
3	DG 1014 98	Gasket (Washer)	—	2
4	DS 1011 66	Silent Bush (V)	—	1
5	DH 1022 01	Camshaft Cap	—	1
6	39 2647 15	Domed Cap Nut	—	4
7	DS 1010 84	Copper Gasket (Washer)	—	4
8	39 2532 04	Hex hd bolt flange - M6	—	2
9	39 1075 04	Hex. Bolt with Flange M6 x 35	—	4

Showing 10 parts in Plate 1
