BAJAJ
AVENGER 160 STREET BS VI OBD2 REV 11
992 parts across 54 plates
ColorDoc: 71120154Rev: REV. 11Date: 2025-02-0154 plates · 11 kits · 15 revisions

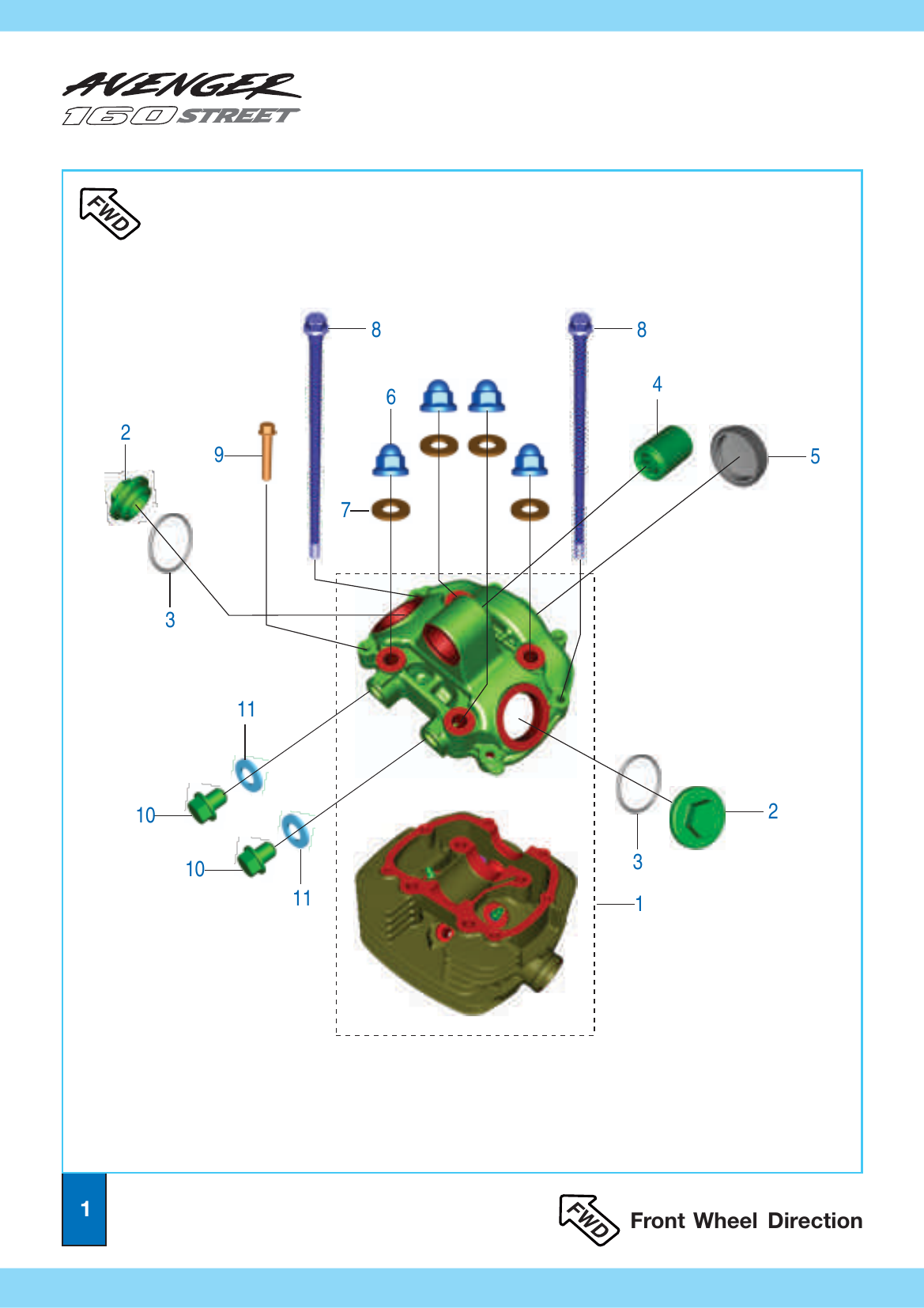

Plate 1
Cover Cylinder Head
PD 5115 16
Head Cylinder Cover Assembly
Ref 11 Refer Kit List
52 PD11 98
Head Cylinder Cover Assembly
Ref 11 For Black colour
DH 1019 16
Bolt flange - M12 x 1.5 x L15
Ref 102
DG 1014 98
Gasket
Ref 112
PD 5110 25
Cover Tappet
Ref 22
52 JN01 36
Cover Tappet
Ref 22 ECR - Sep 22
36 DS10 01
Cyl. Head ‘O’ Ring Kit
Ref 31 Refer Kit List
DS 1011 66
Silent Bush (V)
Ref 41
DH 1022 01
Camshaft Cap
Ref 51
39 2647 15
Domed Cap Nut
Ref 64
LC E000 08
Domed Cap Nut
Ref 64 For Black colour
DS 1010 84
Copper gasket
Ref 74
39 2532 04
Hex hd bolt flange - M6
Ref 82
LA D000 30
Bolt
Ref 82 For Black colour
KA ED06 35
Bolt flanged small
Ref 94
KA EF06 35
Bolt flanged small
Ref 94 For Black colour
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | PD 5115 16 | Head Cylinder Cover Assembly | — | 1 Refer Kit List | |
| 1 var. of 1 | 52 PD11 98 | Head Cylinder Cover Assembly | — | 1 For Black colour | |
| 10 | DH 1019 16 | Bolt flange - M12 x 1.5 x L15 | — | 2 | |
| 11 | DG 1014 98 | Gasket | — | 2 | |
| 2 | PD 5110 25 | Cover Tappet | — | 2 | |
| 2 var. of 2 | 52 JN01 36 | Cover Tappet | — | 2 ECR - Sep 22 | |
| 3 | 36 DS10 01 | Cyl. Head ‘O’ Ring Kit | — | 1 Refer Kit List | |
| 4 | DS 1011 66 | Silent Bush (V) | — | 1 | |
| 5 | DH 1022 01 | Camshaft Cap | — | 1 | |
| 6 | 39 2647 15 | Domed Cap Nut | — | 4 | |
| 6 var. of 6 | LC E000 08 | Domed Cap Nut | — | 4 For Black colour | |
| 7 | DS 1010 84 | Copper gasket | — | 4 | |
| 8 | 39 2532 04 | Hex hd bolt flange - M6 | — | 2 | |
| 8 var. of 8 | LA D000 30 | Bolt | — | 2 For Black colour | |
| 9 | KA ED06 35 | Bolt flanged small | — | 4 | |
| 9 var. of 9 | KA EF06 35 | Bolt flanged small | — | 4 For Black colour |
Showing 16 parts in Plate 1
