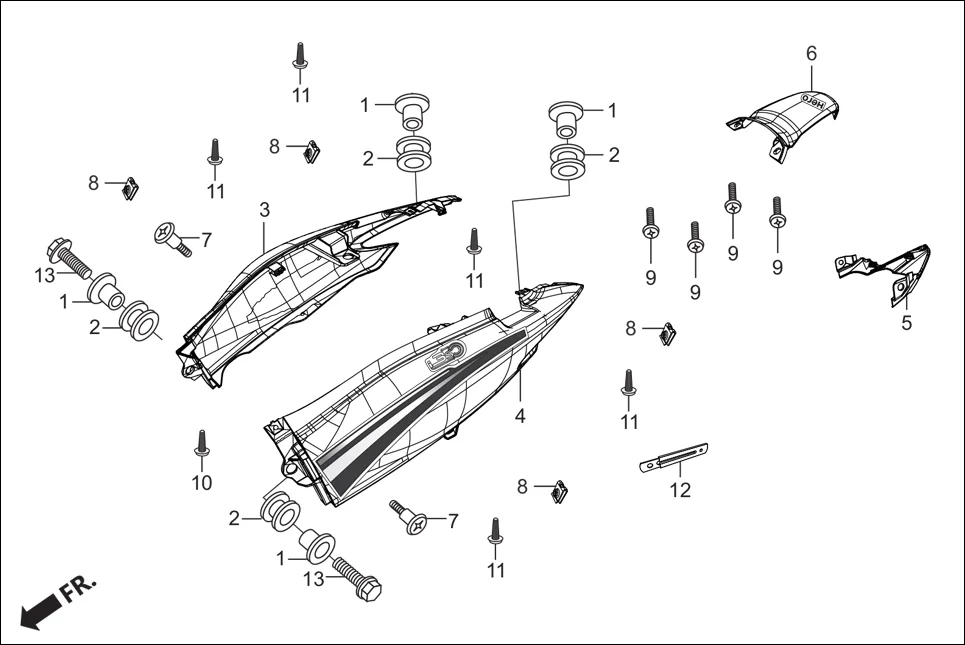

F-10-BODY COVER ( REAR COWL)
HeroPassion X PRO (Jan, 2018) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17509-398-960 | COLLAR, TANK SET | 4 | |
| 2 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 4 | |
| 3 | 77240-AAZ-000R | SET R SIDE COWL (BLACK-1) NH-1 | 1 | |
| 3 | 77240-AAZ-000S | SET R SIDE COWL (BLACK-2) NH-1 | 1 | |
| 3 | 77240-AAZ-000T | SET R SIDE COWL (BLACK-3) NH-1 | 1 | |
| 3 | 77240-AAZ-000U | SET R SIDE COWL (SPORTS RED) | 1 | |
| 3 | 77240-AAZ-000V | SET R SIDE COWL (FORCE SILVER ME.) | 1 | |
| 4 | 77250-AAZ-000R | SET L SIDE COWL (BLACK-1) NH-1 | 1 | |
| 4 | 77250-AAZ-000S | SET L SIDE COWL (BLACK-2) NH-1 | 1 | |
| 4 | 77250-AAZ-000T | SET L SIDE COWL (BLACK-3) NH-1 | 1 | |
| 4 | 77250-AAZ-000U | SET L SIDE COWL (SPORTS RED) | 1 | |
| 4 | 77250-AAZ-000V | SET L SIDE COWL (FORCE SILVER ME.) | 1 | |
| 5 | 77266-AAZ-000 | COWL RR UNDER | 1 | |
| 6 | 77280-AAZ-000R | SET CENTER RR COWL (BLACK-1) NH-1 | 1 | |
| 6 | 77280-AAZ-000S | SET CENTER RR COWL (BLACK-2) NH-1 | 1 | |
| 6 | 77280-AAZ-000T | SET CENTER RR COWL (BLACK-3) NH-1 | 1 | |
| 6 | 77280-AAZ-000U | SET CENTER RR COWL (SPORTS RED) | 1 | |
| 7 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 8 | 90320-GC3-000 | NUT, SPRING, M5 | 4 | |
| 9 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 10 | 93903-34380 | SCREW, TAPPING, 4X12 | 1 | |
| 11 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 5 | |
| 12 | 94591-27000 | CLIP 2 X 70 | 1 | |
| 13 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 |
