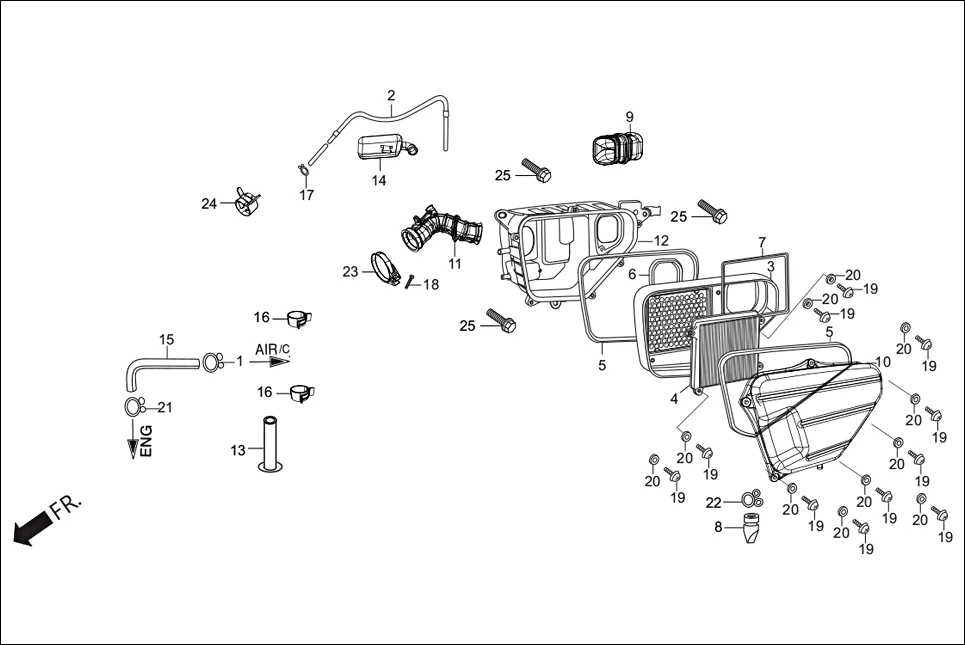

F-15-AIR CLEANER
HeroXtreme Sports (Jan, 2017) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-KTN-900 | CLIP BREATHER TUBE | 1 | |
| 2 | 16199-KVE-930 | TUBE, AIR VENT | 1 | |
| 3 | 17208-KVE-900 | HOLDER COMP., ELEMENT | 1 | |
| 4 | 17211-AAB-100 | ELEMENT COMP AIR/C | 1 | |
| 5 | 17213-KRY-900 | SEALA AIR CLEANER | 2 | |
| 6 | 17214-KRY-900 | SEAL B AIR CLEANER | 1 | |
| 7 | 17215-KTN-700 | SEAL, HOLDER | 1 | |
| 8 | 17216-KVN-900 | TUBE, DRAIN | 1 | |
| 9 | 17219-KVE-900 | DUCT, AIR CLEANER | 1 | |
| 10 | 17220-KVE-900 | COVER AIR/C CASE | 1 | |
| 11 | 17222-KVE-900 | TUBE, AIR/C CONN. | 1 | |
| 12 | 17225-KVN-900 | CASE, SUB ASSY., AIR/C | 1 | |
| 13 | 17234-KS4-770 | TUBE,AIR CLEANER DRAIN | 1 | |
| 14 | 17311-KRC-910 | RESONATOR | 1 | |
| 15 | 17371-KTN-700 | TUBE BREATHER A | 1 | |
| 16 | 19509-GE2-003 | CLAMP, D19 TUBE | 2 | |
| 17 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 18 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 19 | 93500-05016-0A | SCREW, PAN, 5 X 16 | 11 | |
| 20 | 94101-05000 | WASHER , PLAIN, 5MM | 11 | |
| 21 | 95002-70000 | CLIP, C11 TUBE | 1 | |
| 22 | 95002-80000 | CLIP,C12 TUBE | 1 | |
| 23 | 95018-54320 | BAND54, AIR/C CONN. TUBE | 1 | |
| 24 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 25 | 90111-187-000 | BOLT, FLANGE. 6 MM | 3 |
