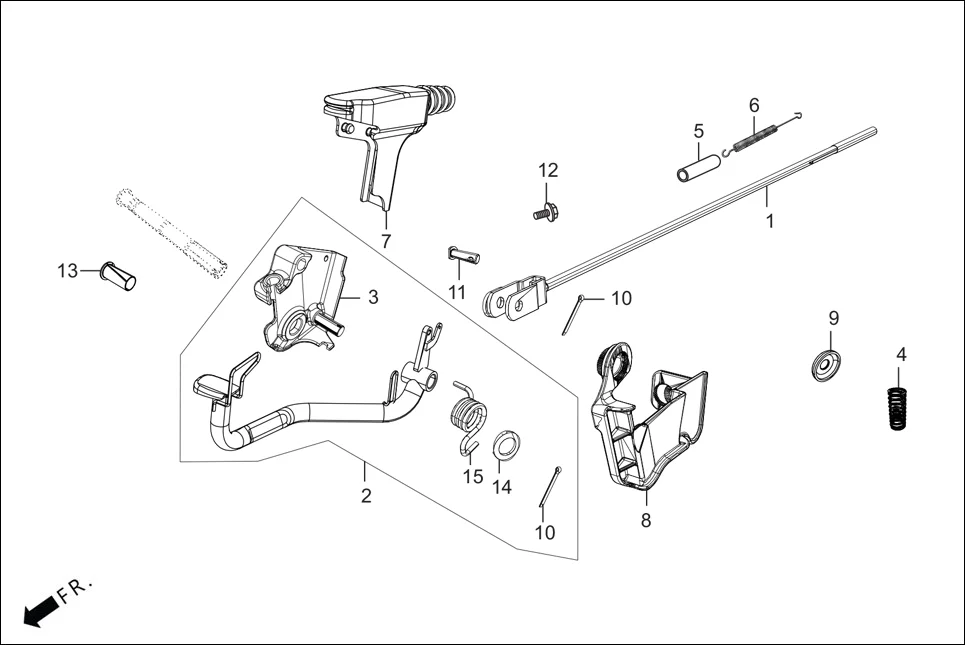

F-18A-DISC-CBS ASSY.
HeroSPLENDOR PLUS OBD IIB(Apr.,2025) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43451-AAH-F00 | ROD COMP., RR BRAKE | 1 | |
| 2 | 46544-ADH-600 | RR BRAKE PEDAL AND ROD SUB ASSY | 1 | |
| 3 | 46513-AAE-B00 | CASING CBS | 1 | |
| 4 | 43453-ADH-600 | CBS MASTER CYL SPRING | 1 | |
| 5 | 46515-KB9-000 | TUBE , BRAKE PEDAL SPRING | 1 | |
| 6 | 46518-AAH-F00 | SPRING, BRAKE PEDAL | 1 | |
| 7 | 46519-AAG-900 | CBS DUST BOOT | 1 | |
| 8 | 46522-AAH-F00 | CBS COVER ASSY | 1 | |
| 9 | 45463-ADH-600 | SPRING CAP | 1 | |
| 10 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 2 | |
| 11 | 95015-AAH-F00 | PIN, CJOINT | 2 | |
| 12 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 |
