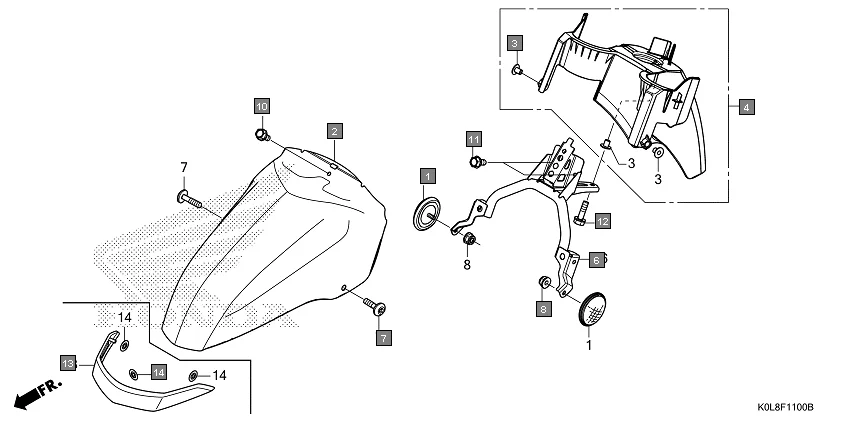

F-11 - FRONT FENDER
HONDA Activa125 SCV125T · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61100-K0L-P10ZZ | FENDER A, FR | 1 | |
| 3 | 61103-KRY-900 | COLLAR, A FR.FENDER | 3 | |
| 4 | 61120-K0L-D00ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 6 | 61300-K0L-D00 | STAY COMP., FR. FENDER | 1 | |
| 7 | 90130-K0L-D00 | SCREW, PAN, 6X22 | 2 | |
| 8 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 10 | 93404-06012-08 | BOLT-WASHER, 6X12 | 1 | |
| 11 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 12 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 1 | |
| 13 | 61130-K0L-D00 | MOUL COMP., FR. FENDER A | 1 | |
| 14 | 90302-KWP-E00 | NUT, PUSH, 3MM | 3 | |
