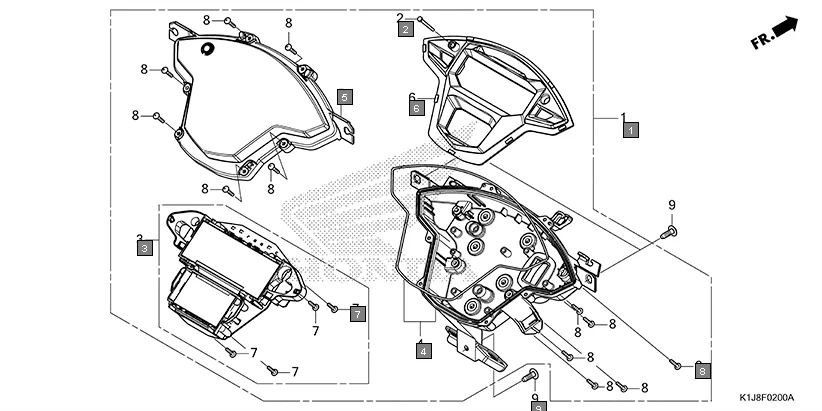

F-2-METER
HONDAGRAZIA SCV125SL · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K1J-DB1 | METER ASSY., COMBINATION(KPH) | 1 | |
| 1 | 37100-K1J-DC1 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37113-K86-D01 | KEY, TOP | 1 | |
| 3 | 37130-K1J-DB1 | METER COMP., LCD(KPH) | 1 | |
| 3 | 37130-K1J-DC1 | METER COMP., LCD(KPH) | 1 | |
| 4 | 37212-K0Y-DL1 | CASE ASSY., UNDER | 1 | |
| 5 | 37213-K1J-D01 | LENS ASSY. | 1 | |
| 6 | 37302-K1J-DB1 | REFLECTOR ASSY. | 1 | |
| 6 | 37302-K1J-DC1 | REFLECTOR ASSY. | 1 | |
| 7 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 4 | |
| 8 | 93903-22420 | SCREW,TAPPING,3 X 16 | 12 | |
| 9 | 93903-25380 | SCREW TAPPING 5X16 | 1 |
