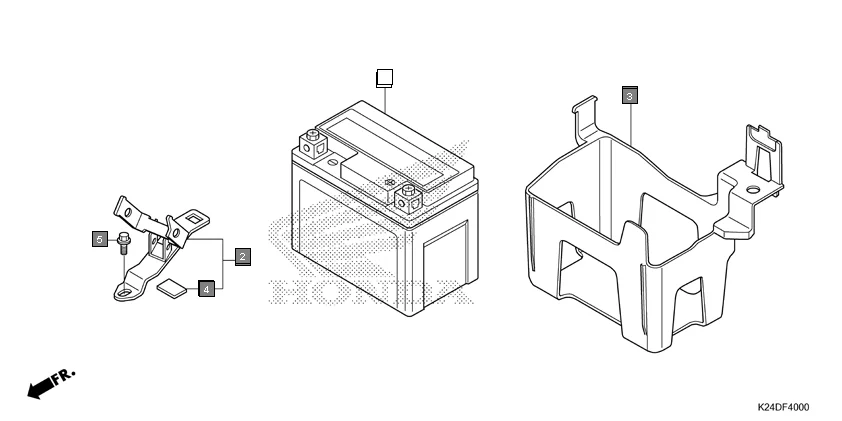

F-40-BATTERY
HONDAActiva125 SCV125K · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KVT-941 | BATTERY ASSY.,MF4 | 1 | |
| 2 | 50341-KVT-F00 | BAND COMP., BATTERY | 1 | |
| 3 | 50381-K24-G00 | TRAY, BATTERY | 1 | |
| 4 | 50386-KWP-D00 | RUBBER A, BATTERY | 1 | |
| 5 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 |
