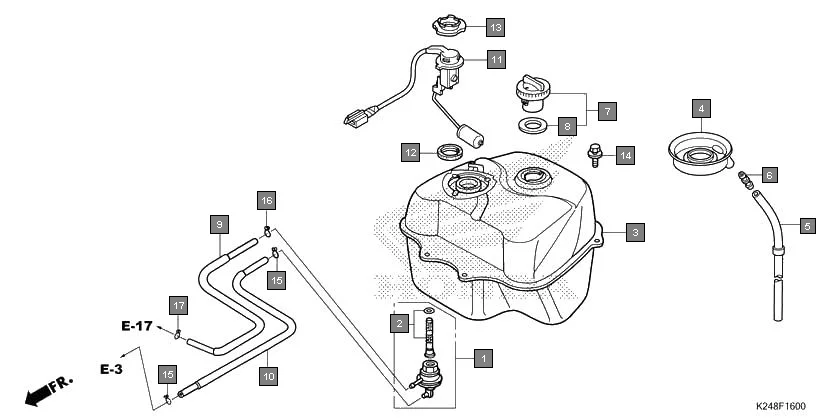

F-16-FUEL TANK
HONDAActiva125 SCV125G · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16950-KRP-981 | COCK ASSY,FUEL | 1 | |
| 2 | 16952-KRP-980 | SCREEN SET, FUEL STRAINER | 1 | |
| 3 | 17500-KWP-E00 | TANK COMP., FUEL | 1 | |
| 4 | 17505-KWP-900 | TRAY, FUEL | 1 | |
| 5 | 17515-KWP-900 | TUBE FUEL DRAIN | 1 | |
| 6 | 17525-KTP-900 | JOINT FUEL TUBE | 1 | |
| 7 | 17620-KRP-980 | CAP COMP, FUEL FILLER | 1 | |
| 8 | 17632-383-831 | PACKING , FUEL FILLTER CAP | 1 | |
| 9 | 17683-K24-900 | TUBE COMP., FUEL | 1 | |
| 10 | 17684-K24-900 | TUBE COMP., VACUUM | 1 | |
| 11 | 37800-K24-901 | FUEL UNIT | 1 | |
| 12 | 37801-GA7-700 | PACKING, BASE | 1 | |
| 13 | 37802-GA7-700 | RETAINER FUEL UNIT | 1 | |
| 14 | 93404-06012-08 | BOLT-WASHER, 6X12 | 2 | |
| 15 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 16 | 95002-02080 | CLIP, TUBE | 1 | |
| 17 | 95002-50000 | CLIP, C9 TUBE | 1 |
