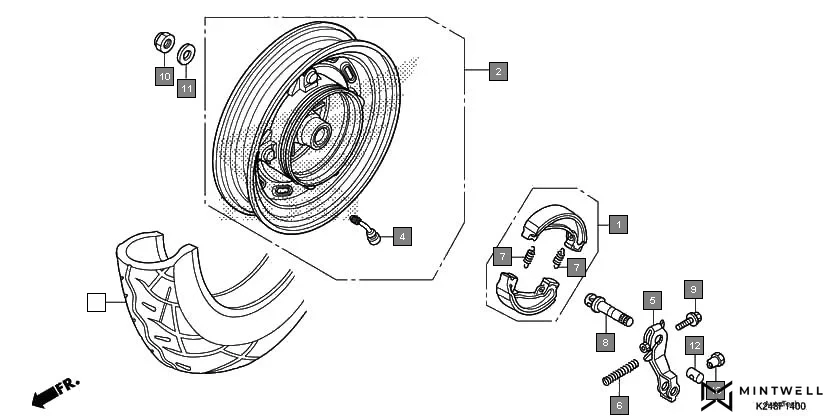

F-14-REAR WHEEL(SCV125-ID)
HONDAActiva125 SCV125G · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KWP-900 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KWP-D00 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 42650-KWP-D00 | WHEEL SUB ASSY., RR. | 1 | |
| 3 | 42711-KZK-901 | TIRE(MRF)(90/100-10M/C 53J) | 1 | |
| 3 | 42711-KZK-902 | TIRE(TVS)(90/100-10M/C 53J) | 1 | |
| 3 | 42711-KWP-D01 | TIRE(DUNLOP)(90/100-10 53J) | 1 | |
| 4 | 42753-KZK-901 | VALVE, RIM(TRITON) | 1 | |
| 5 | 43410-KWP-900 | ARM REAR BRAKE | 1 | |
| 6 | 43472-KPL-900 | SPRING, REAR, BRAKE ARM | 1 | |
| 7 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 8 | 43141-KVT-D10 | CAM, RR. BRAKE | 1 | |
| 8 | 45141-KWP-D00 | CAM, FR. BRAKE (RR.) | 1 | |
| 9 | 90112-KPL-900 | BOLT, FLANGE, 6X30 | 1 | |
| 10 | 90305-KWP-901 | NUT, HEX., 16MM | 1 | |
| 11 | 90501-KPL-900 | WASHER, 16 MM | 1 | |
| 12 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 13 | 95015-42000 | NUT B ADJUST | 1 |
