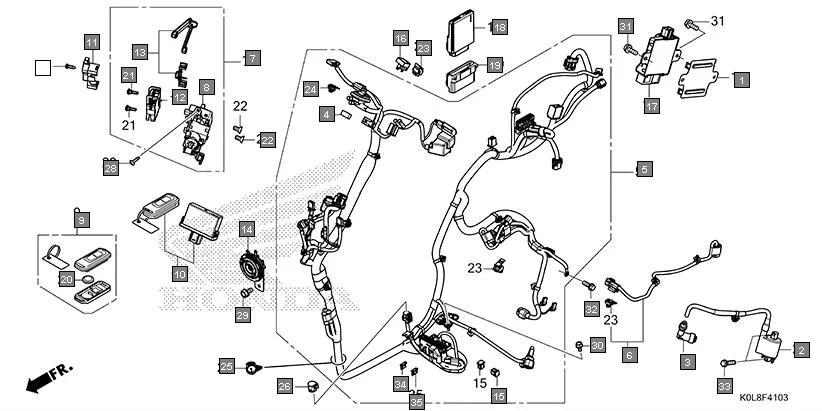

F-41-3 - WIRE HARNESS(SCV125FP-7ID)
HONDA Activa125 SCV125FP · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-K0P-D60 | COVER, A.C. GENERATOR STARTER CONTROL UNIT | 1 | |
| 2 | 30500-K0P-661 | COIL ASSY., IGNITION(WINGS) | 1 | |
| 3 | 30700-K0P-D61 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 4 | 31700-124-008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 | |
| 5 | 32100-K0L-DN0 | HARNESS, WIRE | 1 | |
| 6 | 32105-K0L-D70 | SUB HARNESS, ENGINE | 1 | |
| 7 | 35100-K0P-D81 | SWITCH ASSY., HANDLE LOCK | 1 | |
| 8 | 35101-K0P-D81 | SWITCH COMP., HANDLE LOCK | 1 | |
| 9 | 35111-K0P-D81 | FOB ASSY. | 1 | |
| 10 | 35141-K0L-DN1 | CONTROL UNIT SET, SMART | 1 | |
| 11 | 35191-K2C-V11 | COVER, CABLE | 1 | |
| 12 | 35193-K0P-D81 | SWITCH ASSY., SEAT OPENER | 1 | |
| 13 | 35194-K2C-V11 | KEY SET, EMERGENCY | 1 | |
| 14 | 38110-K0L-D01 | HORN COMP. | 1 | |
| 15 | 38211-SNA-A21 | FUSE, BLOCK(40A) | 2 | |
| 16 | 38301-K0L-DK1 | RELAY COMP., WINKER | 1 | |
| 17 | 38760-K0L-DL1 | CONTROL UNIT, A.C. GENERATOR | 1 | |
| 18 | 38770-K0L-DN1 | PGM-FI UNIT | 1 | |
| 19 | 38771-K0P-D60 | CUSHION, PGM-FI UNIT | 1 | |
| 20 | 72148-S04-000 | BATTERY(CR2032)(MAXELL) | 1 | |
| 21 | 90101-K2C-V11 | SCREW, OPENER SET | 2 | |
| 22 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 23 | 91535-STK-003 | CLIP, COUPLER(DARK BLUE) | 3 | |
| 24 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 1 | |
| 25 | 91558-K0L-D01 | CLIP, WIRE HARNESS | 1 | |
| 26 | 91771-MKK-H11 | CAP, DUMMY(6P)(RED) | 1 | |
| 27 | 93901-24320 | SCREW, TAPPING, 4X12 | 1 | |
| 28 | 93903-24410 | SCREW, TAPPING, 4X16 | 1 | |
| 29 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 30 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 31 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 32 | 96001-06016-00 | BOLT, FLANGE SH. 6 X 16 | 1 | |
| 33 | 96001-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 34 | 98200-40750 | FUSE, MINI(7.5A) | 6 | |
| 35 | 98200-41500 | FUSE, MINI(15A) | 2 | |
