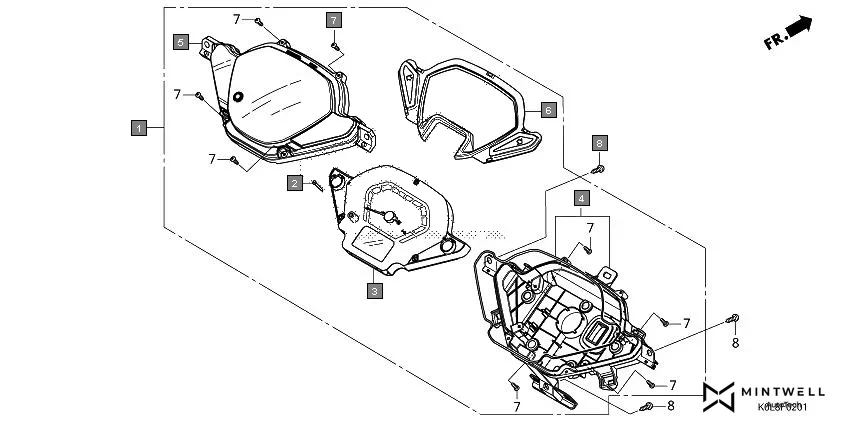

F-2-1 - METER(2ID,3ID,5ID,6ID,7ID,8ID)
HONDA Activa125 SCV125FP · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37200-K0L-D12 | METER ASSY., COMBINATION(KPH) | 1 | |
| 1 | 37200-K0L-D22 | METER ASSY., COMBINATION(KPH) | 1 | |
| 1 | 37200-K0L-DN1 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37202-K0L-D11 | ROD | 1 | |
| 3 | 37210-K0L-D11 | METER ASSY., SPEED(KPH) | 1 | |
| 3 | 37210-K0L-D21 | METER ASSY., SPEED(KPH) | 1 | |
| 3 | 37210-K0L-DN1 | METER ASSY., SPEED(KPH) | 1 | |
| 4 | 37212-K0L-D12 | CASE ASSY., UNDER | 1 | |
| 5 | 37213-K0L-D11 | LENS ASSY. | 1 | |
| 6 | 37302-K0L-D11 | REFLECTOR ASSY. | 1 | |
| 7 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 8 | |
| 8 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
