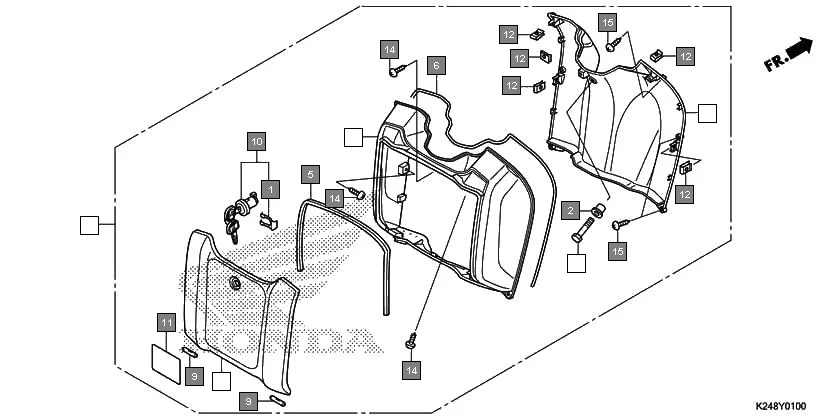

FOP-1 - INNER BOX
HONDA Activa125 SCV125E · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-KPL-900 | SET SPG LOCK KEY | 1 | |
| 2 | 80110-KK4-000 | COLLAR RR FENDER SET | 1 | |
| 3 | 81134-K24-900 | OUTER, INNER BOX | 1 | |
| 4 | 81135-K24-900 | INNER, INNER BOX | 1 | |
| 5 | 81137-K24-900 | SEAL, INNER BOX | 1 | |
| 6 | 81138-K24-900 | SEAL, OUTER INNER | 1 | |
| 7 | 81140-K24-900 | BOX SET, INNER | 1 | |
| 8 | 81141-K24-900 | LID, INNER BOX | 1 | |
| 9 | 81143-GC8-000 | PIN, INNER BOX LID | 2 | |
| 10 | 81145-KPL-900 | KEY SET, INNER BOX | 1 | |
| 11 | 87505-K24-900 | LABEL, TIRE | 1 | |
| 12 | 90344-KRP-900 | NUT CLIP 5MM | 5 | |
| 13 | 92101-06030-0H | BOLT HEX 6X30 | 1 | |
| 14 | 93903-25280 | SCREW, TAPPING 5X12 | 5 | |
| 15 | 93903-25580 | SCREW TAPPING 5X25 | 6 | |
