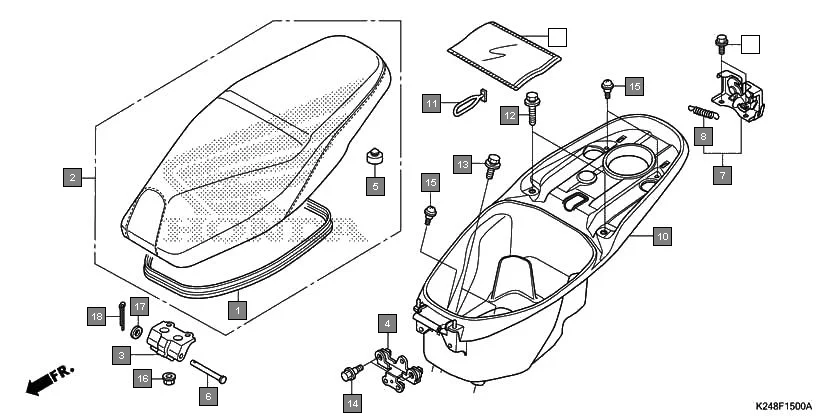

F-15 - SEAT/LUGGAGE BOX
HONDA Activa125 SCV125E · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-K24-900 | RUBBER, SEAL | 1 | |
| 2 | 77200-K24-901ZA | SEAT COMP., DOUBLE *TYPE1* | 1 | |
| 3 | 77201-K24-900 | HINGE, SEAT | 1 | |
| 4 | 77203-K24-900 | STAY, HOOK LUGGAGE | 1 | |
| 5 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 6 | 77215-K24-900 | PIN, SEAT HINGE | 1 | |
| 7 | 77235-KVT-900 | CATCH COMP., SEAT | 1 | |
| 8 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 9 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 10 | 81250-K24-900 | BOX, LUGGAGE | 1 | |
| 11 | 89012-KWP-900 | BAND TOOL | 1 | |
| 12 | 90101-KWP-900 | BOLT-WASH 8X40 | 2 | |
| 13 | 90107-KWP-900 | BOLT WASH 8 X 16 | 2 | |
| 14 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 2 | |
| 15 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 3 | |
| 16 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 17 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 18 | 94201-16180 | PIN, SPLIT, 1.6X18 | 1 | |
| 19 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 19 | 95702-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
