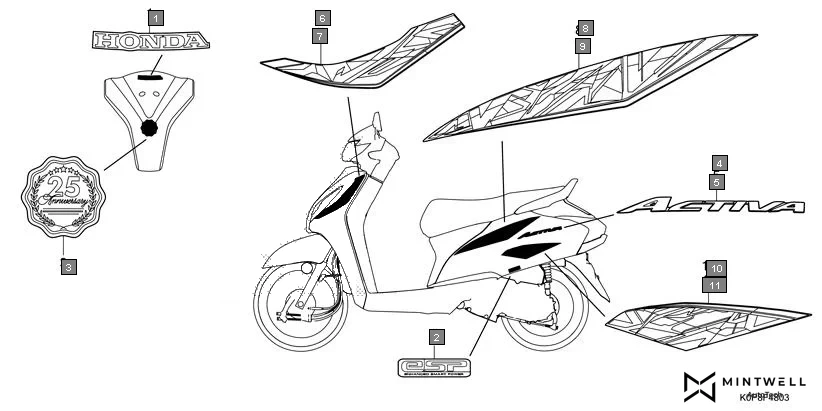

F-48-3 - MARK(SCV110T)
HONDA Activa SCV110T · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K24-G00ZB | MARK, HONDA(105MM) *TYPE1* | 1 | |
| 1 | 86101-K24-G00ZA | MARK, HONDA(105MM) *TYPE2* | 1 | |
| 2 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 3 | 86173-K0N-CC0ZA | STRIPE, ANNIVERSARY *TYPE1* | 1 | |
| 4 | 86532-K0P-DR0 | EMBLEM, R. BODY COVER | 1 | |
| 5 | 86632-K0P-DR0 | EMBLEM, L. BODY COVER | 1 | |
| 6 | 86643-K0P-DY0ZB | STRIPE, R. FR. COVER *TYPE1* | 1 | |
| 7 | 86644-K0P-DY0ZB | STRIPE, L. FR. COVER*TYPE1* | 1 | |
| 8 | 86645-K0P-DY0ZB | STRIPE A, R. BODY COVER *TYPE1* | 1 | |
| 9 | 86646-K0P-DY0ZB | STRIPE A, L. BODY COVER *TYPE1* | 1 | |
| 10 | 86647-K0P-DY0ZB | STRIPE B, R. BODY COVER *TYPE1* | 1 | |
| 11 | 86648-K0P-DY0ZB | STRIPE B, L. BODY COVER *TYPE1* | 1 | |
