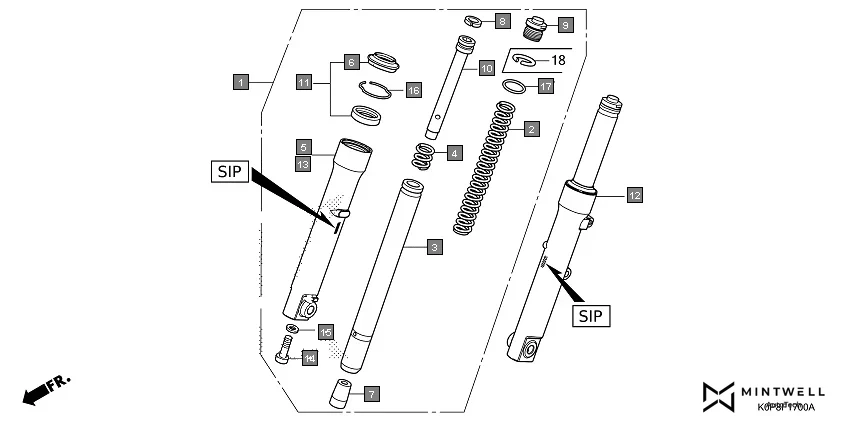

F-17 - FRONT FORK(SHOWA)
HONDA Activa SCV110T · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K0L-D21 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51401-KVT-911 | SPRING, FR. FORK | 2 | |
| 3 | 51410-K24-911 | PIPE COMP., FR. FORK | 2 | |
| 4 | 51412-KSP-901 | SPRING, REBOUND | 2 | |
| 5 | 51420-K0L-D21 | CASE, R. FR. BOTTOM(SHOWA) | 1 | |
| 6 | 51425-961-013 | DUST SEAL(SHOWA) | 2 | |
| 7 | 51432-KFN-851 | PIECE, OIL LOCK | 2 | |
| 8 | 51437-KVN-901 | RING, PISTON | 2 | |
| 9 | 51454-K24-911 | BOLT, FR. FORK | 2 | |
| 10 | 51470-KVT-911 | PIPE, SEAT | 2 | |
| 11 | 51490-KWS-901 | SEAL SET, FR. FORK | 2 | |
| 12 | 51500-K0L-D01 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 13 | 51520-K0L-D01 | CASE, L. FR. BOTTOM(SHOWA) | 1 | |
| 14 | 90116-KAG-901 | BOLT, SOCKET, 8MM(SHOWA) | 2 | |
| 15 | 90544-439-930 | WASHER, SPECIAL, 8 MM | 2 | |
| 16 | 90601-GF5-731 | RING OIL SEAL STOP | 2 | |
| 17 | 91356-KAG-901 | O-RING(SHOWA) | 2 | |
