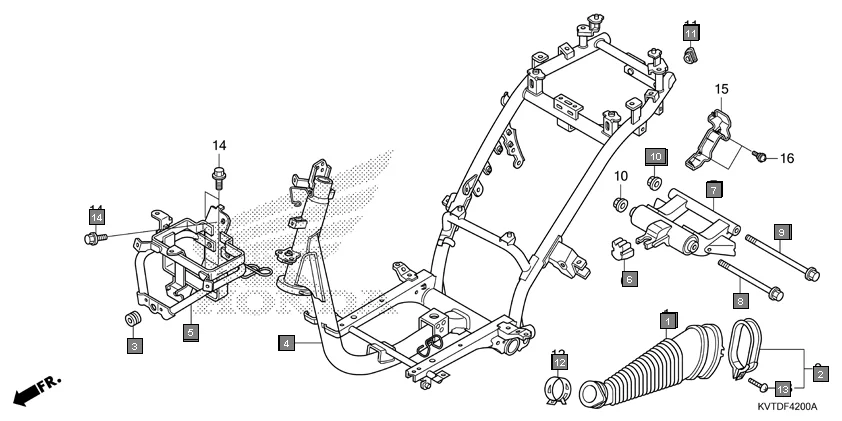

F-42 - FRAME BODY
HONDA Aviator SCV110GFK · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-K24-G00 | DUCT, L. COVER | 1 | |
| 2 | 11346-KCW-870 | BAND, L. COVER. DUCT | 1 | |
| 3 | 33715-965-000 | RUBBER, TAIL LIGHT MTG. | 1 | |
| 4 | 50100-KVT-G10 | BODY COMP., FRAME | 1 | |
| 5 | 50330-KVT-G10 | TRAY COMP., BATTERY | 1 | |
| 6 | 50352-GW0-730 | RUBBER, LINK STOPPER | 1 | |
| 7 | 50355-KVT-G00 | LINK SUB ASSY., ENGINE HANGER | 1 | |
| 8 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 9 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 2 | |
| 11 | 90862-KVT-900 | PLUG, FRAME END | 1 | |
| 12 | 91405-KPL-900 | CLAMP, D29 TUBE | 1 | |
| 13 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 14 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 3 | |
