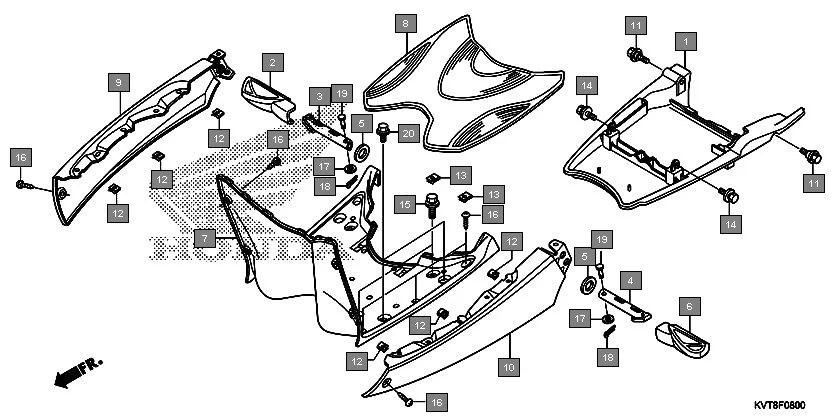

F-8 - FLOOR STEP
HONDA Aviator SCV110GFF · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-KVT-D00 | COVER, UNDER | 1 | |
| 2 | 50710-KVT-900 | RUBBER, R. PILLION STEP | 1 | |
| 3 | 50711-KVT-900 | BAR, R. PILLION STEP | 1 | |
| 4 | 50712-KVT-900 | BAR, L. PILLION STEP | 1 | |
| 5 | 50715-KE8-000 | PLATE, P. STEP SIDE | 2 | |
| 6 | 50720-KVT-900 | RUBBER, L. PILLION STEP | 1 | |
| 7 | 64310-KVT-F00ZA | STEP, FLOOR STEP, FLOOR | 1 | |
| 8 | 64315-KVT-940 | MAT, FLOOR | 1 | |
| 9 | 64320-KVT-F00ZZ | COVER COMP., R. SIDE | 1 | |
| 10 | 64330-KVT-F00ZZ | COVER COMP., L. SIDE | 1 | |
| 11 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 12 | 90344-KRB-900 | NUT, CLIP, 5MM | 6 | |
| 13 | 90344-KRP-900 | NUT CLIP 5MM | 2 | |
| 14 | 93404-06012-08 | BOLT-WASHER, 6X12 | 2 | |
| 15 | 93404-06020-08 | BOLT-WASHER, 6X20 | 4 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 17 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 18 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 19 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 20 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 4 | |
| 20 | 95702-06012-08 | BOLT, FLANGE, 6X12 | 4 | |
