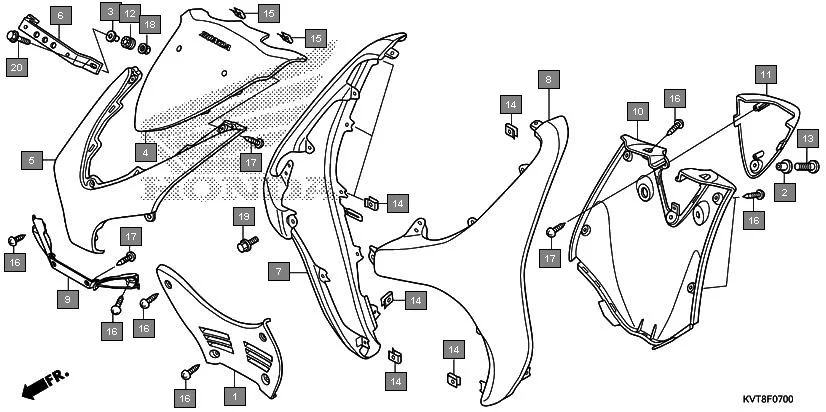

F-7 - FRONT COVER
HONDA Aviator SCV110GFF · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50623-KVT-900ZA | COVER, FR. UNDER *NH1* BLACK | 1 | |
| 2 | 61103-KRY-900 | COLLAR, A FR.FENDER | 1 | |
| 3 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 4 | 64200-KVT-F00ZA | COVER SET, FR. UPPER(WL) *TYPE4* | 1 | |
| 4 | 64200-KVT-F00ZB | COVER SET, FR. UPPER(WL) *TYPE3* | 1 | |
| 4 | 64200-KVT-F00ZC | COVER SET, FR. UPPER(WL) *TYPE2* | 1 | |
| 4 | 64200-KVT-F00ZD | COVER SET, FR. UPPER(WL) *TYPE1* | 1 | |
| 5 | 64302-KVT-900ZA | COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC | 1 | |
| 5 | 64302-KVT-960 | COVER, FR. LOWER *NHB07M* MAT EARL SILVER METALLIC | 1 | |
| 6 | 64303-KVT-F00 | STAY, FR. NUMBER PLATE | 1 | |
| 7 | 64304-KVT-D00ZZ | COVER COMP., R. FR. | 1 | |
| 8 | 64305-KVT-D00ZZ | COVER COMP., L. FR. | 1 | |
| 9 | 64312-KVT-940ZA | LOUVER, FR. COVER *NH1* BLACK | 1 | |
| 10 | 81131-KVT-900ZB | COVER, INNER *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 10 | 81131-KVT-900ZE | COVER, INNER *R329* REBEL RED METALLIC | 1 | |
| 10 | 81131-KVT-900ZK | COVER, INNER *NH468M* STRAND SILVER METALLIC | 1 | |
| 10 | 81131-KVT-900ZL | COVER, INNER *NHB63P* PEARL AMAZING WHITE | 1 | |
| 11 | 81132-KVT-F00ZA | COVER, INNER UPPER *YR324R* CAFE BROWN R | 1 | |
| 12 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 13 | 90113-KVT-901 | BOLT, SPECIAL HEX., 6X20 | 1 | |
| 14 | 90344-KRB-900 | NUT, CLIP, 5MM | 14 | |
| 15 | 90344-KRP-900 | NUT CLIP 5MM | 2 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 17 | 93903-34320 | SCREW, TAPPING, 4X12 | 7 | |
| 18 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 19 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 4 | |
| 19 | 95702-06012-08 | BOLT, FLANGE, 6X12 | 4 | |
| 20 | 95701-06025-07 | BOLT, FLANGE, 6X25 | 2 | |
| 20 | 95702-06025-07 | BOLT, FLANGE, 6X25 | 2 | |
