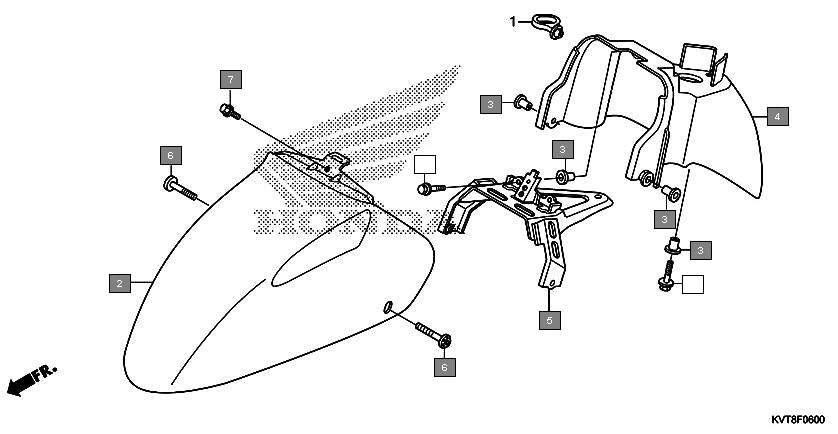

F-6 - FRONT FENDER
HONDA Aviator SCV110GFF · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 61100-KVT-D00ZZ | FENDER A, FR. | 1 | |
| 3 | 61103-KRY-900 | COLLAR, A FR.FENDER | 5 | |
| 4 | 61120-KVT-940ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 4 | 61120-KVT-960ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 5 | 61300-KVT-900 | STAY COMP., FR. FENDER | 1 | |
| 6 | 90113-KVT-901 | BOLT, SPECIAL HEX., 6X20 | 2 | |
| 7 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 7 | 95702-06012-08 | BOLT, FLANGE, 6X12 | 1 | |
| 8 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 3 | |
| 8 | 95702-06020-08 | BOLT, FLANGE, 6X20 | 3 | |
