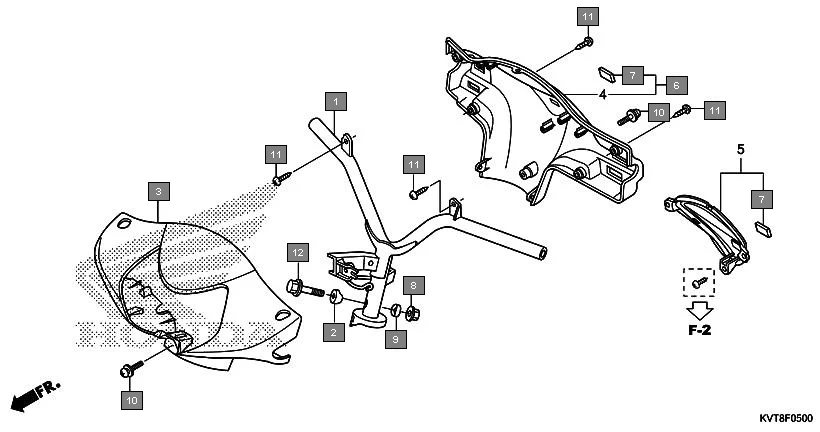

F-5 - STEERING HANDLE/HANDLE COVER
HONDA Aviator SCV110GFF · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-KVT-940 | HANDLE COMP., STEERING | 1 | |
| 2 | 53124-KCW-870 | COLLAR, HANDLE SETTING | 1 | |
| 3 | 53205-KVT-940ZB | COVER, FR. HANDLE *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 53205-KVT-940ZD | COVER, FR. HANDLE *R329M* REBEL RED METALLIC | 1 | |
| 3 | 53205-KVT-940ZJ | COVER, FR. HANDLE *NH468M* STRAND SILVER METALLIC | 1 | |
| 3 | 53205-KVT-940ZK | COVER, FR. HANDLE *NHB63P* PEARL AMAZING WHITE | 1 | |
| 6 | 53250-KVT-F00ZA | COVER COMP., RR. HANDLE *YR324R* CAFE BROWN R | 1 | |
| 7 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 8 | 90304-KGH-901 | NUT, U, 10MM | 1 | |
| 8 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 9 | 90502-KWP-900 | COLLAR B HNDL SET | 1 | |
| 10 | 93891-05016-07 | SCREW WASH 5X16 | 2 | |
| 11 | 93903-34380 | SCREW, TAPPING, 4X12 | 6 | |
| 12 | 95801-10055-08 | BOLT, FLANGE, 10X55 | 1 | |
| 12 | 95802-10055-08 | BOLT, FLANGE, 10X55 | 1 | |
