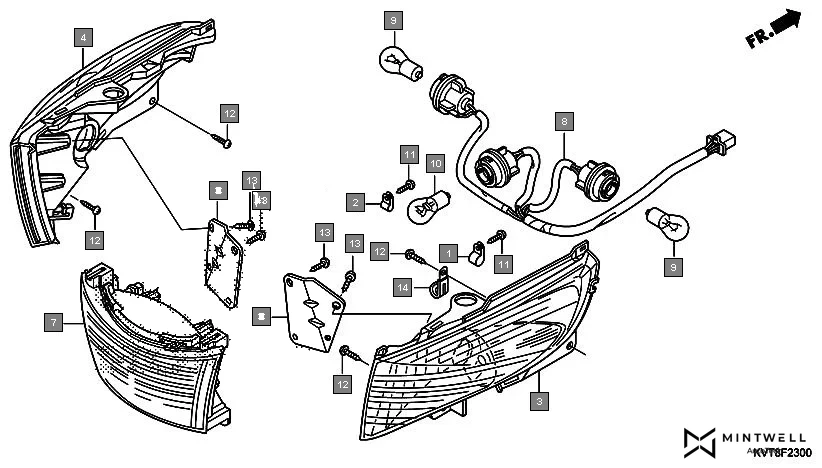

F-23 - REAR COMBINATION LIGHT
HONDA Aviator SCV110GFF · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32920-KVT-901 | CLIP A, HARNESS | 1 | |
| 2 | 32930-KVT-901 | CLIP B, HARNESS | 1 | |
| 3 | 33610-KVT-901 | WINKER UNIT, R. RR. | 1 | |
| 4 | 33660-KVT-901 | WINKER UNIT, L. RR. | 1 | |
| 5 | 33706-KVT-900 | STAY, R. RR. COMBINATION LIGHT | 1 | |
| 6 | 33707-KVT-900 | STAY, L. RR. COMBINATION LIGHT | 1 | |
| 7 | 33710-KVT-901 | TAILLIGHT UNIT | 1 | |
| 8 | 33715-KVT-901 | SOCKET COMP. | 1 | |
| 9 | 34904-KTE-910 | BULB, WINKER(AMBER)(12V 21W) | 2 | |
| 9 | 34904-KTP-901 | BULB, WINKER LIGHT(12V 21W)(AMBER) | 2 | |
| 9 | 34904-KVT-940 | BULB, WINKER LIGHT(12V 21W) | 2 | |
| 10 | 34906-KRB-900 | BULB, TAILLIGHT(12V 21/5W) | 1 | |
| 10 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 11 | 93901-34420 | SCREW ,TAPPING,4 X 16 | 2 | |
| 12 | 93903-34420 | SCREW TAPPING 4X16 | 4 | |
| 13 | 93903-35320 | SCREW, TAPPING, 5X16 | 8 | |
| 14 | 94591-27000 | CLIP 2 X 70 | 1 | |
