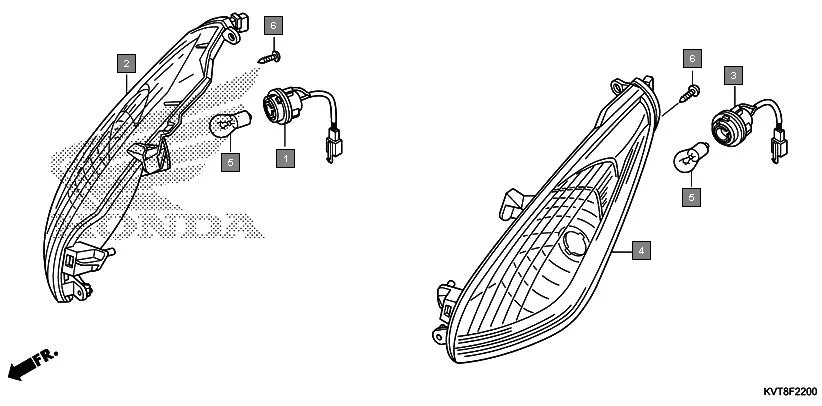

F-22-FRONT WINKER
HONDAAviator SCV110GFF · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33405-KVT-901 | SOCKET COMP., R. | 1 | |
| 2 | 33410-KVT-901 | LENS COMP., R. | 1 | |
| 3 | 33455-KVT-901 | SOCKET COMP., L. | 1 | |
| 4 | 33460-KVT-901 | LENS COMP., L. | 1 | |
| 5 | 34904-KTE-910 | BULB, WINKER(AMBER)(12V 21W) | 2 | |
| 5 | 34904-KVT-940 | BULB, WINKER LIGHT(12V 21W) | 2 | |
| 6 | 93903-35220 | SCREW, TAPPING, 5X12 | 6 |
