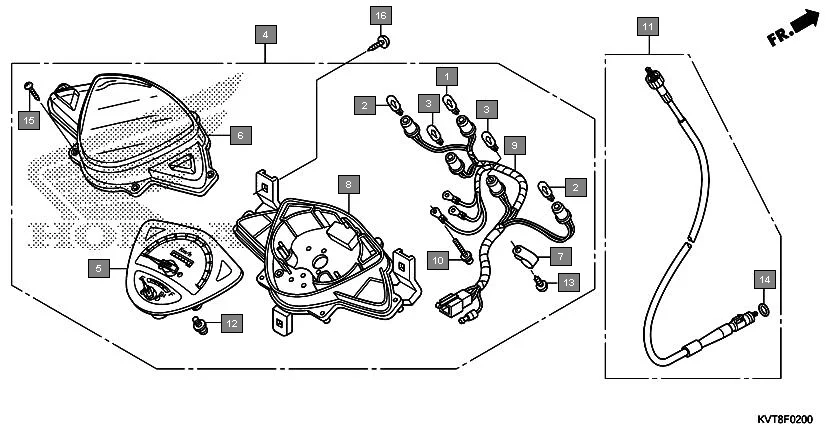

F-2 - METER
HONDA Aviator SCV110GFF · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 1 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 3 | 34909-KVH-900 | BLUB WEDGE BASE (12V-3.0W) | 2 | |
| 4 | 37200-KVT-901 | SPEEDOMETER ASSY. | 1 | |
| 5 | 37210-KVT-901 | SPEEDOMETER COMP. | 1 | |
| 6 | 37211-KVT-901 | LENS | 1 | |
| 7 | 37215-KS3-901 | CLAMP | 1 | |
| 8 | 37220-KVT-901 | CASE COMP. | 1 | |
| 9 | 37224-KVT-901 | SOCKET COMP. | 1 | |
| 10 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 11 | 44830-KVT-940 | CABLE COMP., SPEEDOMETER | 1 | |
| 12 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 13 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 14 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 15 | 93903-22420 | SCREW,TAPPING,3 X 16 | 6 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
