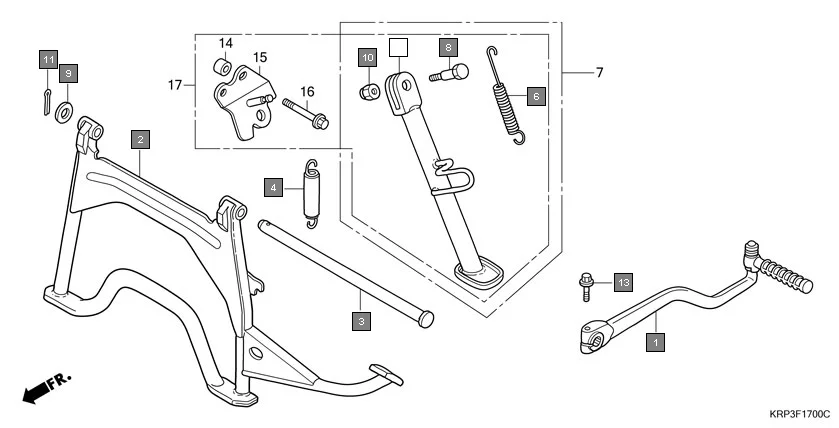

F-17 - KICK STARTER ARM/STAND
HONDA Aviator SCV110GC · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28300-KVT-900 | ARM ASSY., KICK STARTER | 1 | |
| 2 | 50500-KVT-900 | STAND COMP., MAIN | 1 | |
| 3 | 50503-GCC-000 | SHAFT, MAIN STAND | 1 | |
| 4 | 50505-GCC-000 | SPG.ASSY., MAIN STAND | 1 | |
| 5 | 50530-KVT-900 | BAR COMP., SIDE STAND | 1 | |
| 6 | 50536-KPL-900 | SPG. SIDE SET | 1 | |
| 8 | 90109-KPL-900 | BOLT SIDE STAND PIVOT | 1 | |
| 9 | 94102-12000 | WASHER, PLAIN, 12MM | 1 | |
| 10 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
| 11 | 94201-25250 | PIN, SPLIT, 2.5X25 | 1 | |
| 13 | 95701-08025-07 | BOLT FLANGE 8X25 | 1 | |
