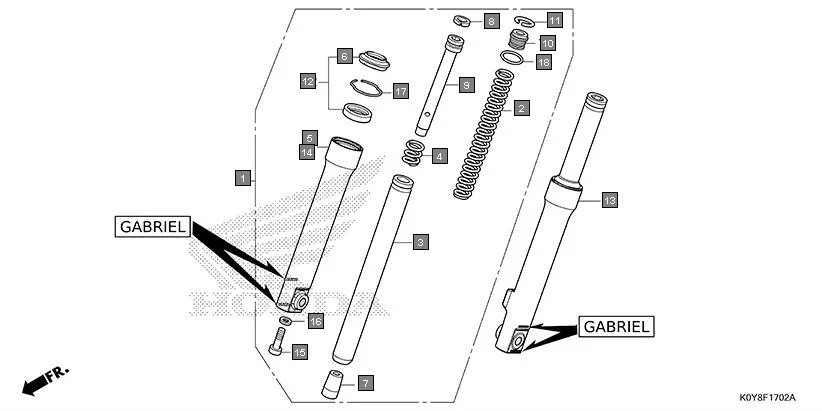

F-17-2 - FRONT FORK(GABRIEL)(2)
HONDA Dio SCV110FS · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-K0Y-DR3 | FORK ASSY., R. FR.(GABRIEL) | 1 | |
| 2 | 51401-K0P-DA2 | SPRING, FR. FORK(GABRIEL) | 2 | |
| 3 | 51410-K0P-DA2 | PIPE COMP., FR. FORK(GABRIEL) | 2 | |
| 4 | 51412-K0P-D01 | SPRING, REBOUND(GABRIEL) | 2 | |
| 5 | 51420-K0Y-DR3 | CASE, R. FR. BOTTOM | 1 | |
| 6 | 51425-K14-C01 | SEAL, DUST(GABRIEL) | 2 | |
| 7 | 51432-K14-C01 | PIECE, OIL LOCK(GABRIEL) | 2 | |
| 8 | 51437-K14-C01 | RING, PISTON(GABRIEL) | 2 | |
| 9 | 51440-K0P-D01 | PIPE, SEAT(GABRIEL) | 2 | |
| 10 | 51454-K0P-DA2 | SEAT, SPRING UPPER(GABRIEL) | 2 | |
| 11 | 51456-K0P-DA2 | RING, STOPPER(GABRIEL) | 2 | |
| 12 | 51490-K14-C01 | SEAL SET, FR. FORK(GABRIEL) | 2 | |
| 13 | 51500-K0Y-DR3 | FORK ASSY., L. FR.(GABRIEL) | 1 | |
| 14 | 51520-K0Y-DR3 | CASE, L. FR. BOTTOM | 1 | |
| 15 | 90116-K14-C01 | BOLT, SOCKET, 8MM(GABRIEL) | 2 | |
| 16 | 90544-K14-C01 | WASHER, SPECIAL, 8MM(GABRIEL) | 2 | |
| 17 | 90651-K14-C01 | RING, OIL SEAL STOP(GABRIEL) | 2 | |
| 18 | 91351-K14-C01 | O-RING(GABRIEL) | 2 | |
