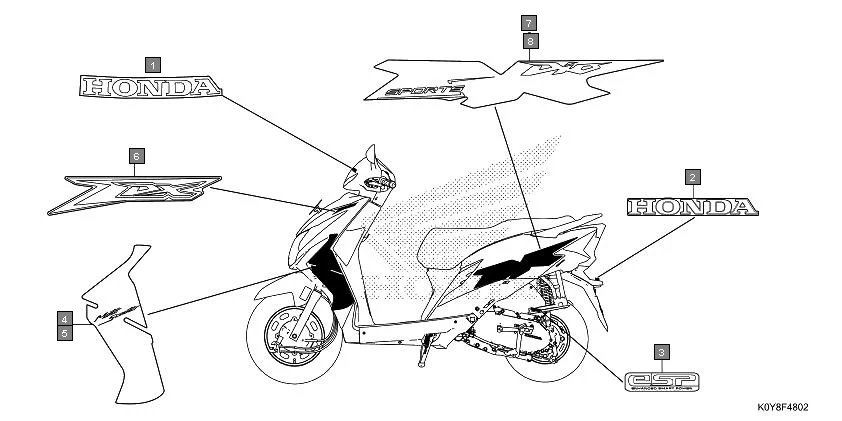

F-48-2-MARK(SCV110F-5ID,6ID)
HONDADio SCV110FP · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-KZK-D20ZC | MARK, HONDA(75MM) *TYPE1* | 1 | |
| 2 | 86102-K0Y-D00ZA | MARK, HONDA(55MM) *TYPE1* | 1 | |
| 3 | 86170-K0L-D00 | MARK, ENGINE | 1 | |
| 4 | 86643-K0Y-DF0ZA | STRIPE A, R. FR. COVER *TYPE2* | 1 | |
| 4 | 86643-K0Y-DF0ZB | STRIPE A, R. FR. COVER *TYPE1* | 1 | |
| 5 | 86644-K0Y-DF0ZA | STRIPE A, L. FR. COVER *TYPE2* | 1 | |
| 5 | 86644-K0Y-DF0ZB | STRIPE A, L. FR. COVER *TYPE1* | 1 | |
| 6 | 86645-K0Y-DF0ZA | STRIPE B, FR. COVER *TYPE2* | 1 | |
| 6 | 86645-K0Y-DF0ZB | STRIPE B, FR. COVER *TYPE1* | 1 | |
| 7 | 86831-K0Y-DF0ZA | STRIPE, R. BODY COVER *TYPE2* | 1 | |
| 7 | 86831-K0Y-DF0ZB | STRIPE, R. BODY COVER *TYPE1* | 1 | |
| 8 | 86832-K0Y-DF0ZA | STRIPE, L. BODY COVER *TYPE2* | 1 | |
| 8 | 86832-K0Y-DF0ZB | STRIPE, L. BODY COVER *TYPE1* | 1 |
