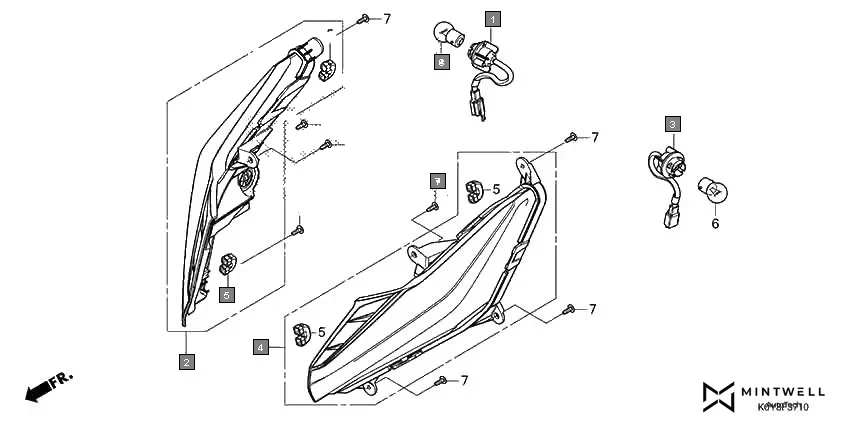

F-37-10 - FRONT WINKER
HONDA Dio SCV110FP · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33405-K0Y-D01 | SUB CORD, R. FR. WINKER | 1 | |
| 2 | 33410-K0Y-D01 | LENS COMP., R. | 1 | |
| 3 | 33455-K0Y-D01 | SUB CORD, L. FR. WINKER | 1 | |
| 4 | 33460-K0Y-D01 | LENS COMP., L. | 1 | |
| 5 | 33706-KWS-901 | TUBE | 4 | |
| 6 | 34930-KWA-930 | BULB, WINKER(12V 10W)(AMBER) | 2 | |
