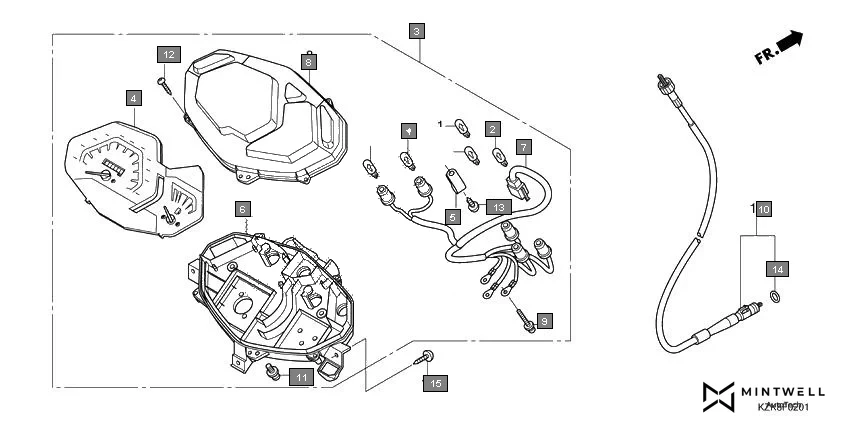

F-2-1 - METER(2)
HONDA Dio SCV110FBK · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 2 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 3 | 37200-KZK-E01 | SPEEDOMETER ASSY.(KPH) | 1 | |
| 4 | 37210-KZK-D21 | METER COMP., SPEED & FUEL(KPH) (NIPPON SEIKI) | 1 | |
| 5 | 37215-KS3-901 | CLAMP | 1 | |
| 6 | 37220-KZK-E01 | CASE COMP., LOWER | 1 | |
| 7 | 37224-KZK-E01 | SOCKET COMP. | 1 | |
| 8 | 37230-KZK-D21 | CASE COMP., UPPER (NIPPON SEIKI) | 1 | |
| 9 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 10 | 44830-KWP-902 | CABLE COMP., SPEEDOMETER | 1 | |
| 11 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 12 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 5 | |
| 13 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 14 | 91352-671-003 | O-RING, 8.5X1.5(ARAI) | 1 | |
| 15 | 93903-25380 | SCREW TAPPING 5X16 | 3 | |
