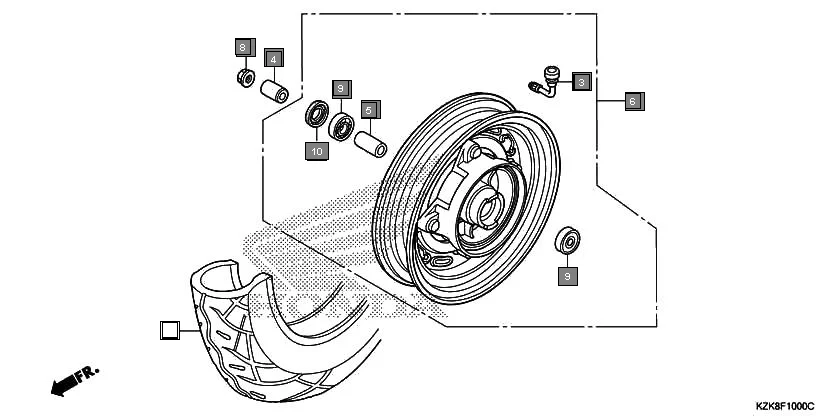

F-10 - FRONT WHEEL
HONDA Dio SCV110FBK · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 42711-KZK-901 | TIRE(MRF)(90/100-10M/C 53J) | 1 | |
| 2 | 42711-KZK-902 | TIRE(TVS)(90/100-10M/C 53J) | 1 | |
| 3 | 42753-KZK-901 | VALVE, RIM(TRITON) | 1 | |
| 3 | 42753-KRP-980 | VALVE, RIM (TAIHEIYO) | 1 | |
| 4 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 5 | 44620-KPL-900 | COLLAR FR WHEEL DISTANCE | 1 | |
| 6 | 44650-KZK-901 | WHEEL SUB ASSY., FR. | 1 | |
| 8 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 9 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 10 | 91251-KWP-901 | SEAL DUST 20X32X5 | 1 | |
