OEM Part
OEM Part
90112-KPL-900
BOLT, FLANGE, 6X30
Qty Required: 1
Ref #9 in Assembly
Part of Assembly

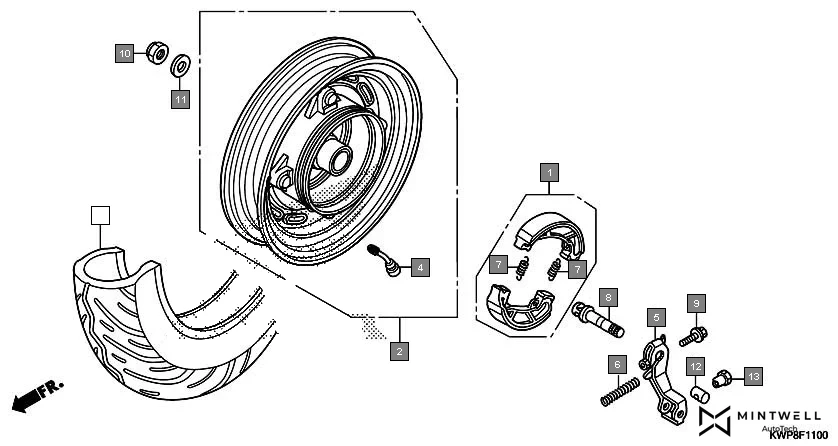

F-11
REAR WHEEL
17 parts in this assembly
Assembly Diagram
Ref #9
Supported Vehicles78
Related Parts
06430-KWP-900
SHOE SET, BRAKE(JB)
06430-KWP-D00
SHOE SET, BRAKE(ASK)
42650-KWP-E00
WHEEL SUB ASSY., RR.
42711-KWP-D01
TIRE(DUNLOP)(90/100-10 53J)
42711-KWP-F01
TIRE(CEAT)(90/100-10 53J)
42711-KZK-901
TIRE(MRF)(90/100-10M/C 53J)
