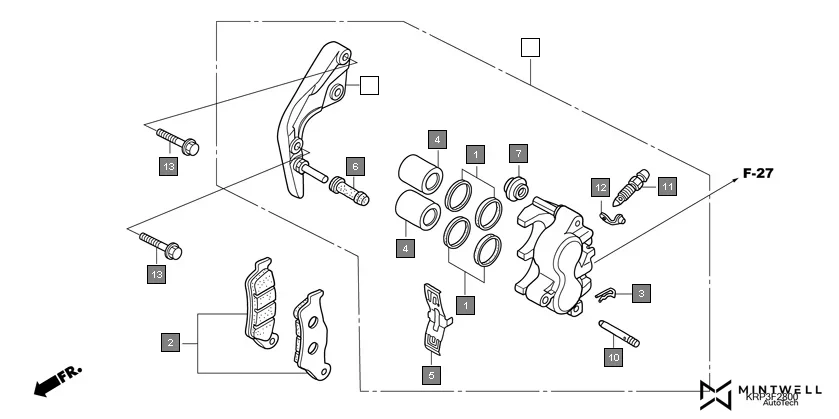

F-28-FRONT BRAKE CALIPER(SCV100G8-2ID/4ID)
HONDAAviator SCV100G8 · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06451-KCC-841 | SEAL SET, PISTON | 2 | |
| 2 | 06455-KVT-911 | PAD SET, FR. | 1 | |
| 3 | 43216-MAK-003 | CLIP | 1 | |
| 4 | 45107-KCC-841 | PISTON, 26 | 2 | |
| 5 | 45108-KCC-841 | PAD, SPRING | 1 | |
| 6 | 45132-KCC-841 | BUSH, BOOT PIN | 1 | |
| 7 | 45133-KCC-841 | BOOT,B | 1 | |
| 8 | 45150-KVT-911 | CALIPER SUB ASSY., L. FR. | 1 | |
| 9 | 45190-KVT-911 | BRACKET SUB ASSY., FR. | 1 | |
| 10 | 45220-KCC-841 | PIN COMP., HANGER | 1 | |
| 11 | 45352-KCC-841 | SCREW, BLEEDER | 1 | |
| 12 | 45353-KCC-841 | CAP, BLEEDER | 1 | |
| 13 | 90155-KVT-910 | BOLT, FLANGE, 8X35 | 2 |
